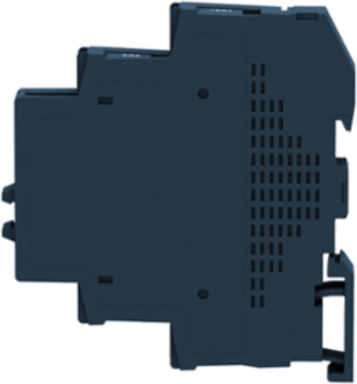

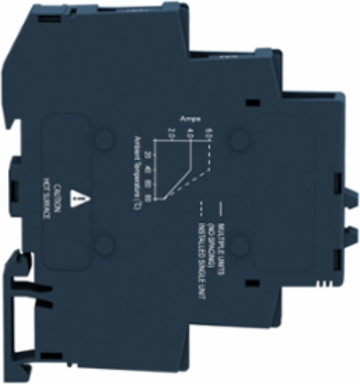

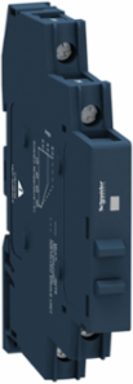

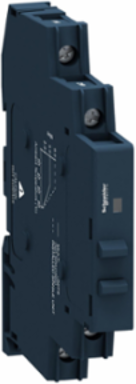

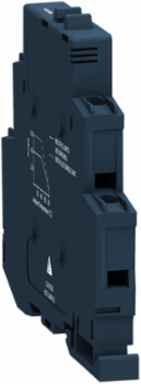

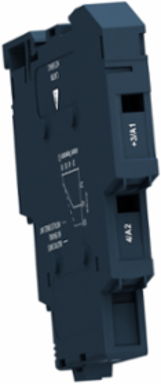

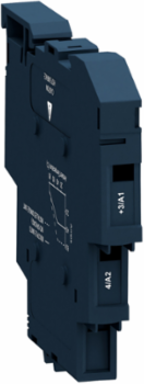

Schneider Electric SSM1A16BD Harmony Solid State Relay, 6A, 4-32V DC Input, 24-280V AC Output

MPN: SSM1A16BD
PPN: SCH-SSM1A16BD

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$53.91

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

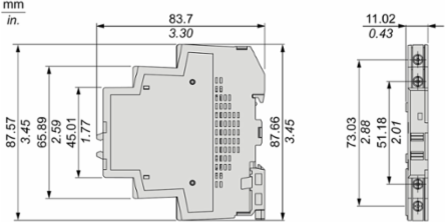

Depth	83.7 mm

Complementary Attributes

Maximum Voltage Drop	<1.3 V on-state, <1.3 V on-state<1.3 V on-state, <1.3 V on-state
Line Rated Current	6 A
Maximum Leakage Current	0.1 mA off-state
Minimum Switching Voltage	4 V DC turn-on

Absolute Maximum Voltage	600 V
Maximum Horse Power Rating	0.16 hp 40 °C 240 V AC
Maximum Switching Voltage	1 V DC turn-off
Rated Current	6 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Dielectric Strength	4 kV AC for input/output, 4 kV AC for input or output to case
Tightening Torque	0.5...0.8 N.m for input, 0.5...0.8 N.m for output
Certificate Agency	CSA, UL
Connections - Terminals	screw terminals 1 x 0.3...1 x 1.5 mm², 22 AWG...16 AWG) input, screw terminals 1 x 0.3...1 x 2.5 mm², 22 AWG...14 AWG) output, screw connectors
Carbon Footprint Of The Distribution Phase [A4]	0.0085154943, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0003393521
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	114 kg CO2 eq., 113.8558179556
Local Publishable Date	2026-03-26
Stocking Flag	N
Service Catalog Item	Finished good
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Cos Phi	0.5-0.5 (with maximum load)
Flame Retardance	V0 conforming to UL 94
Load Current	0.15-6 A
Marking	CE
Number Of Channels	1
Phase	1 phase
Product Configuration Type	relay configuration
Range Of Product	Harmony Solid State Relays
Software Version	EIME v5.8.1
Total Lifecycle Carbon Footprint	115 kg CO2 eq.
Pep Code	ENVPEP1307069EN
Pep Verification Date	2019-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27
Height Nominal	90.3 mm
Dv/Dt	500 V/µs off-state at maximum voltage
Package Weight(Lbs)	63.000 g
Warranty (In Months)	18
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	289.1552

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Response Time	0.5 cycle (turn-on), 0.5 cycle (turn-off)
Control Circuit Voltage	4...32 V
[Uc] Control Circuit Voltage	DC, 4...32 V
Maximum I²T For Fusing	410 A².s for 10 ms at 50 Hz, 375 A².s for 8.33 ms at 60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0090468566, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.8 kg CO2 eq., 0.7842169811
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1307069EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Control Type	without test button
Device Short Name	SSM
Insulation Resistance	1000 MOhm at 500 V DC
Local Signalling	LED (green) for input status
Mounting Support	symmetrical DIN rail
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	modular DIN rail relay
Returnability	Yes
Sustainable Packaging	Yes
Output Voltage 35	24...280 V AC
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional-unit Unit	unité (unit)
Energy Model - Manufacturing [A1-a3]	Energy model used: Mexico
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	75
Width Nominal	11 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	289.1552
Customs Code	8536490055

Environment Attributes Main

Ambient Air Temperature For Operation	-30-80 °C, -30-80 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	114.6579366397
Environmental Disclosure	ENVPEP1307069EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1307069EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-30-100 °C, -30-100 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1307069EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2019-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
