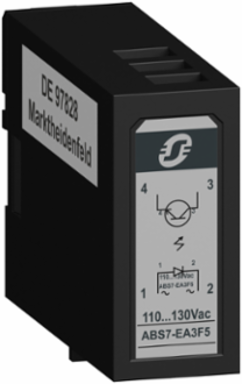

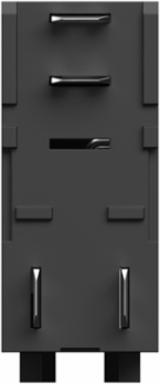

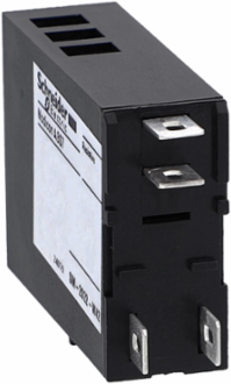

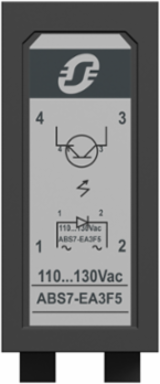

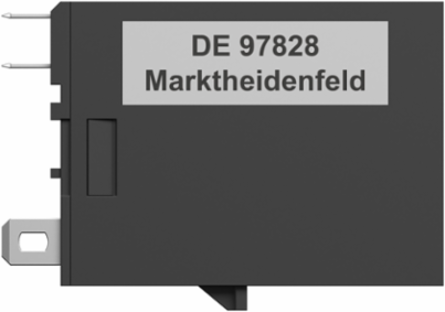

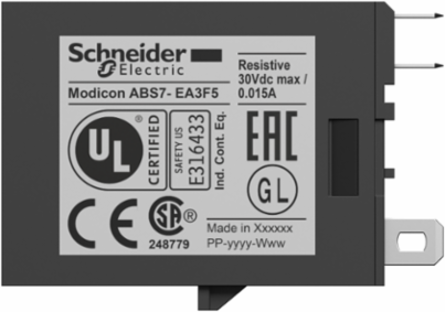

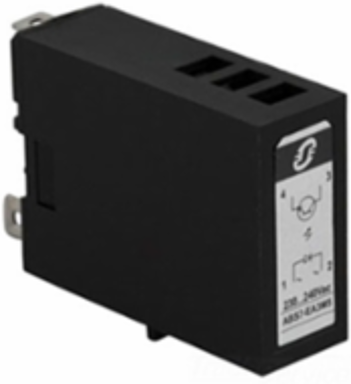

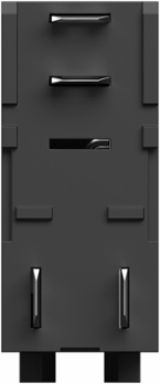

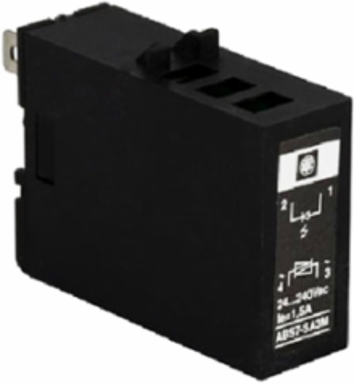

Schneider Electric ABS7EA3F5 Plug-In Solid State Relay 12.5 mm 110-130 V AC Response Time 20 ms

MPN: ABS7EA3F5
PPN: SCH-ABS7EA3F5
UNSPSC: 39122333

$26.71

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Advantys Telefast ABE7 range, an offer of plug-in solid state relays. This plug-in solid state relay offers ≤20ms from state 0 to 1 and ≤20ms from state 1 to 0 response time. It is a sub base with discrete input voltage ranges from 115V to 127V AC and discrete output voltage ranges from 5V to 24V DC. The width of this product is 12.5mm. It weighs 0.014kg. It is suitable for all types of industrial applications. It is compatible with ABE7P16F310, ABE7P16F310E and ABE7P16F312. It is sold in a set of 4. The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Features

Minus 20ms response time
Plug-in solid state relay
The width of this product is 12.5mm. It weighs 0.014kg.
It is suitable for all types of industrial applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Latvia, United States

Weight	14 g

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Response Time	<= 20 ms from state 0 to 1, <= 20 ms from state 0 to 1, <= 20 ms from state 1 to 0, <= 20 ms from state 1 to 0<= 20 ms from state 0 to 1, <= 20 ms from state 0 to 1, <= 20 ms from state 1 to 0
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.02911850833212351
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.3 kg CO2 eq., 0.286432132033352
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1846
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 4
Relay Type	input relay
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	0.3 kg CO2 eq.
Width Pitch Dimension	12 mm
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	5

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Carbon Footprint Of The Distribution Phase A4	0.0034878514914222832, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.003974850272292631, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-08-06
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Product Or Component Type	plug-in solid state relay
Range Of Product	Advantys Telefast ABE7
Returnability	Yes
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Width Nominal	12.5 mm
Customs Code	8536410030
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To interface PLC I/O signals with field devices through a pre-wired relay interface, operating at 1.92 W during 10 years and a 100% use rate.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	2102.4

Environment Attributes Main

Product Compatibility	ABE7P16F310, ABE7P16F310E, ABE7P16F312
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1409004_V2
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-05-29
Psr Version	PSR-0005-ed3-EN-2023 06 06

Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.3230133421291904
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1409004_V2
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
