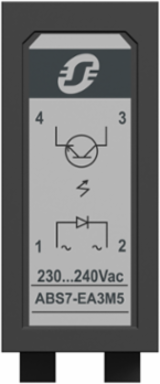

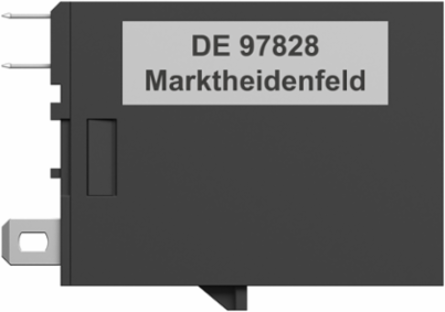

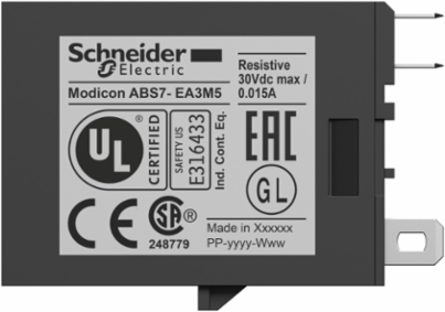

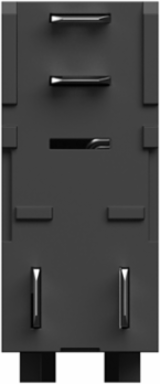

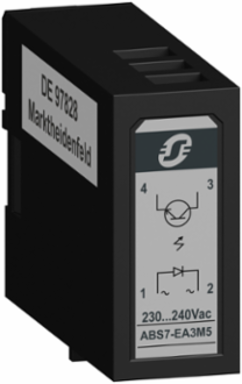

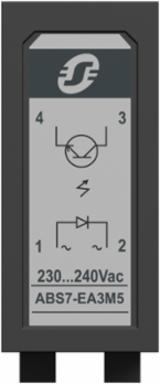

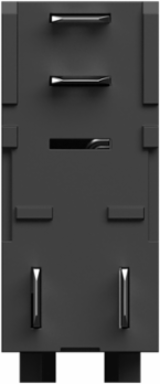

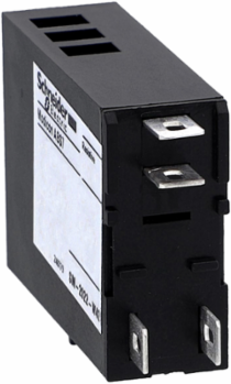

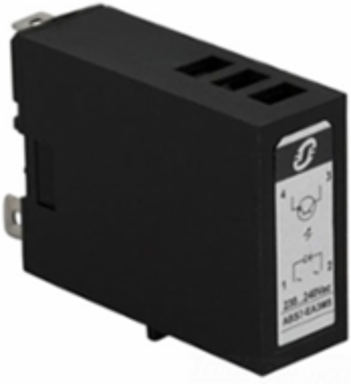

Schneider Electric ABS7EA3M5 Plug-In Solid State Relay 12 mm, Input Voltage 230-240 V AC
Schneider Electric ABS7EA3M5 Plug-In Solid State Relay 12 mm, Input Voltage 230-240 V AC
- MPN: ABS7EA3M5
- PPN: SCH-ABS7EA3M5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$25.92/ EA
Description
This product is part of the Advantys Telefast ABE7, an offer of connection sub-bases for Telefast pre-wired system. This plug in solid state relay offers input relay with ≤20ms from state 0 to 1 and ≤20ms from state 1 to 0 response time. It is a sub-base with discrete input voltage ranges from 230V AC to 240V AC and discrete output voltage ranges from 5V DC to 24V DC. The width of this product is 12mm. It weighs 0.014kg. It is suitable for all types of industrial applications. It is compatible with Modicon ABE7P16F310, ABE7P16F310E and ABE7P16F312 sub-base. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409004EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Relay Type
- input relay
- Quantity Per Set
- set of 4
Range Of ProductAdvantys Telefast ABE7
Product Or Component Typeplug-in solid state relay
Complementary
- Discrete Input Voltage
- 230...240 V AC 50/60 Hz
- Product Compatibility
- ABE7P16F310E || ABE7P16F312 || ABE7P16F310
- Width Pitch Dimension
- 12 mm
Response Time<= 20 ms from state 0 to 1 || <= 20 ms from state 1 to 0
Net Weight0.014 kg
Discrete Output Voltage5...24 V DC
Contractual warranty
- Warranty
- 18 months
