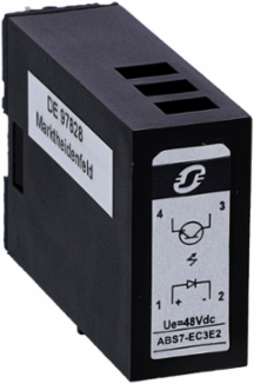

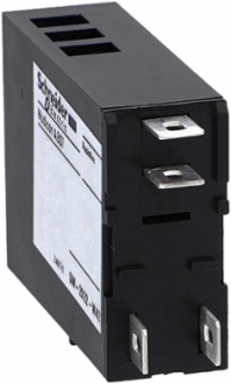

Schneider Electric ABS7EC3E2 Plug-in Solid State Relay 12 mm, 48 V DC, Input Relay, Green Premium

MPN: ABS7EC3E2
PPN: SCH-ABS7EC3E2
UNSPSC: 32151705

$26.71

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This plug-in solid state relay from Schneider Electric is engineered for precise control and reliability in automation applications. Operating with a 48 V DC input, it effectively manages electrical loads while ensuring minimal mechanical wear, thanks to its solid-state construction. Measuring just 12 mm in width, this relay is ideal for projects where space is at a premium, making it a versatile addition to any control system. Designed to integrate seamlessly within automation and control setups, it supports the intricate demands of modern PLC and HMI systems, facilitating efficient data acquisition and I/O management.

Features

Enabling connection/adaptation of control signals of PLC cards equipped with HE10 connectors
Plug & play solution offering 8, 12, or 16 channel modularity, for a 1, 2, and 3 wire connection
Offering voltage and power adaptation and common polarities distribution
Figuring solid state and electromechanical technology, smart sub-bases for analog signal connection
Ensuring smart compatibility with Modicon PLCs and Modicon I/O modules

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Latvia

Weight	14 g

Important Information Attributes

Response Time	<= 0.05 ms from state 0 to 1, <= 0.05 ms from state 0 to 1, <= 0.4 ms from state 1 to 0, <= 0.4 ms from state 1 to 0<= 0.05 ms from state 0 to 1, <= 0.05 ms from state 0 to 1, <= 0.4 ms from state 1 to 0, <= 0.4 ms from state 1 to 0
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.02911850833212351
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.3 kg CO2 eq., 0.286432132033352
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1846
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 4
Relay Type	input relay
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	0.3 kg CO2 eq.
Width Pitch Dimension	12 mm
Data Source	extrapolated product
Customs Code	8536410050
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To interface PLC I/O signals with field devices through a pre-wired relay interface, operating at 1.92 W during 10 years and a 100% use rate.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	2102.4

Carbon Footprint Of The Distribution Phase A4	0.0034878514914222832, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.003974850272292631, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Product Kit Identifier	N
Product Or Component Type	plug-in solid state relay
Range Of Product	Advantys Telefast ABE7
Returnability	No
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	5

Environment Attributes Main

Product Compatibility	ABE7P16F310E, ABE7P16F312, ABE7P16F310
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1409004_V2
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-05-29
Psr Version	PSR-0005-ed3-EN-2023 06 06

Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.3230133421291904
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1409004_V2
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
