Schneider Electric SSM1A16F7 Harmony Solid State Relay 6A 90-140V AC Input 24-280V AC Output
- MPN: SSM1A16F7
- PPN: SCH-SSM1A16F7
CAD
$56.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

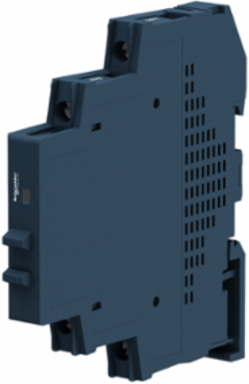

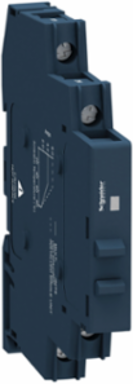

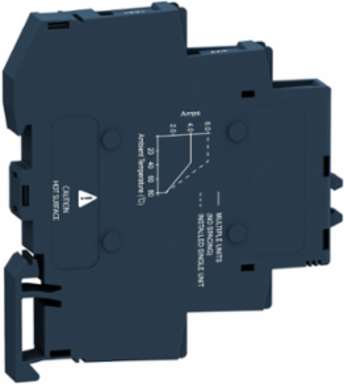

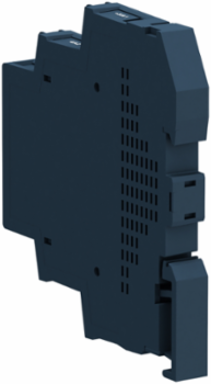

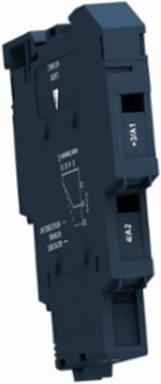

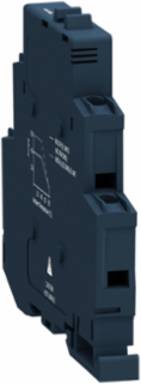

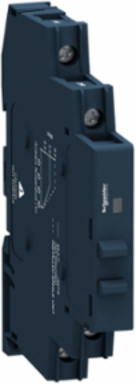

This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 90V to 140V AC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States

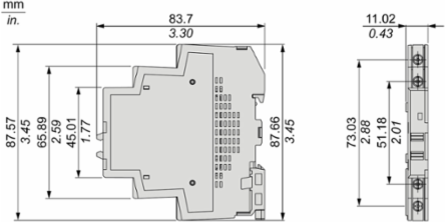

Depth83.7 mm
Complementary Attributes
- Maximum Voltage Drop
- <1.3 V on-state, <1.3 V on-state<1.3 V on-state, <1.3 V on-state
- Line Rated Current
- 6 A
- Maximum Leakage Current
- 0.1 mA off-state
- Minimum Switching Voltage
- 90 V AC turn-on
Absolute Maximum Voltage600 V
Maximum Horse Power Rating0.16 hp 40 °C 240 V AC
Maximum Switching Voltage10 V AC turn-off
Rated Current6 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 4 kV AC for input/output, 4 kV AC for input or output to case
- Control Circuit Voltage
- 90...140 V
- [Uc] Control Circuit Voltage
- AC, 90...140 V
- Maximum I²T For Fusing
- 410 A².s for 10 ms at 50 Hz, 375 A².s for 8.33 ms at 60 Hz
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1307069EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Control Type
- without test button
- Device Short Name
- SSM
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Local Signalling
- LED (green) for input status
- Mounting Support
- symmetrical DIN rail
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- modular DIN rail relay
- Response Time
- 0.5 cycle (turn-on)30 ms (turn-off)
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP1307069EN
- Width Nominal
- 11 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490055
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Tightening Torque0.5...0.8 N.m for input, 0.5...0.8 N.m for output
Certificate AgencyUL, CSA
Connections - Terminalsscrew terminals 1 x 0.3...1 x 1.5 mm², 22 AWG...16 AWG) input, screw terminals 1 x 0.3...1 x 2.5 mm², 22 AWG...14 AWG) output, screw connectors
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cos Phi0.5-0.5 (with maximum load)
Flame RetardanceV0 conforming to UL 94
Load Current0.15-6 A
MarkingCE
Number Of Channels1
Phase1 phase
Product Configuration Typerelay configuration
Range Of ProductHarmony Solid State Relays
ReturnabilityYes
Output Voltage 3524...280 V AC
Height Nominal90.3 mm
Dv/Dt500 V/µs off-state at maximum voltage
Package Weight(Lbs)74.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -30-80 °C, -30-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1307069EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-30-100 °C, -30-100 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1307069EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1307069EN
