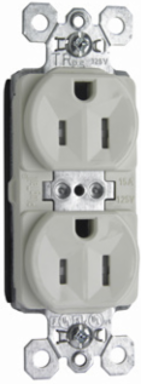

Pass & Seymour PTTR5262LA PlugTail 15A 125V Tamper-Resistant Duplex Receptacle, Light Almond, 0.625 Inch Depth, 1.5 Inch Width, 2.75 Inch Height
Pass & Seymour PTTR5262LA PlugTail 15A 125V Tamper-Resistant Duplex Receptacle, Light Almond, 0.625 Inch Depth, 1.5 Inch Width, 2.75 Inch Height
- MPN: PTTR5262LA
- UPC: 785007001808
- PPN: P-S-PTTR5262LA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$27.07/ EA
Description
PlugTail® Tamper-Resistant Spec Grade Receptacles, 15A, 125VPlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Receptacle compliant with 2014 NEC, CA Title 24, and ASHRAE 90.1
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Crimped and welded contacts.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
- Auto-ground clip assures positive ground.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Specifications
Specifications
- Depth
- 0.625 in
- Phase
- Three
- Amperage
- 15.0 A
- Country of Origin
- Mexico
- Standard
- FEDSPEC
- Features
- Plugload
- Indoor/Outdoor
- Indoor
- Is Tamper-Resistant
- Yes
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-15R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Features
- Single Piece Plated Steel Mounting Strap
- Product Line
- Pass & Seymour
Height2.75 in
Width1.5 in
StandardUL 498
Voltage125.0 V
Wire Size12 AWG
Number of Wires3.0
Wall Plate IncludedNo
Number of Receptacles2.0
Outlet TypeTamper-Resistant
Connection LocationBack Only
Wire Connection TypePlugTail
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
ColorLight Almond
Special FeaturesDual mechanical shutter system, plated steel wrap, built in connector, crimped & welded contacts
