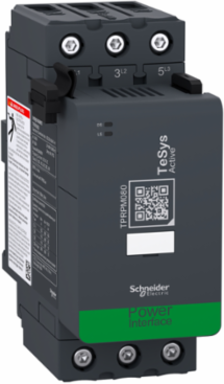

Schneider Electric TPRPM080 TeSys Island Power Module 80A, 37kW, 3 Poles, IP20
- MPN: TPRPM080
- PPN: SCH-TPRPM080
CAD
$925.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys island power module, 3 poles, 80A/690V. Connected to a TPRBC bus coupler it protects and monitors loads up to 80A and motors up to 37kW@400V / 40hp@480V. External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. It provides motor protection functions including thermal overload (setting 4-80A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Depth125 mm
Complementary Attributes
- Maximum Horse Power Rating
- 20 hp at 240 V AC 60 Hz for 3 phase motors5 hp at 120 V AC 60 Hz for 1 phase motors10 hp at 240 V AC 60 Hz for 1 phase motors, 20 hp at 208 V AC 60 Hz for 3 phase motors40 hp at 480 V AC 60 Hz for 3 phase motors50 hp at 600 V AC 60 Hz for 3 phase motors
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
- Local Signalling
- 1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status)
- Motor Power Kw
- 22 kW at 230 V AC 50 Hz37 kW at 380...415 V AC 50 Hz, 37 kW at 440 V AC 50 Hz, 37 kW at 500 V AC 50 Hz, 37 kW at 690 V AC 50 Hz
- Certificate Agency
- CCC, UL, EAC, CSA
- [Ue] Rated Operational Voltage
- <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz<= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz
- Connections - Terminals
- EverLink BTR screw connectors 2 1-25 mm² 16 AWG...4 AWG)flexible without cable endEverLink BTR screw connectors 2 1-25 mm² 16 AWG...4 AWG)flexible with cable endEverLink BTR screw connectors 1 1-35 mm² 16 AWG...2 AWG)rigidEverLink BTR screw connectors 2 1-25 mm² 16 AWG...4 AWG)rigidEverLink BTR screw connectors 1 1-35 mm² 16 AWG...2 AWG)flexible without cable end, EverLink BTR screw connectors 1 1-35 mm² 16 AWG...2 AWG)flexible with cable end
- Local Publishable Date
- 2026-07-15
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1904009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1911
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Current Consumption
- 60 mA
- Energy Efficiency Optimized
- False
- Mounting Mode
- horizontal and vertical 35 mm symmetrical DIN rail)
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- power module
- Range Of Product
- TeSys
- Returnability
- No
- Sustainable Packaging
- Yes
- Thermal Protection Adjustment Range
- 4-80 A
- Vibration Resistance
- 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-61 gn 13-200 Hz) IEC 60068-2-6
- Pep Code
- ENVPEP1904009EN
- Width Nominal
- 55 mm
- [Uc] Control Circuit Voltage
- 24 V DC supplied by the bus coupler
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 536.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Function Availableupstream voltage presence detection, electronic thermal overload protection, monitoring of currents, control of third party power devices when associated to TPRDG IO module
Metering Typetime device ON, number of faults, number of device power cycles, average current Iavg, average voltage Vavg, max current Imax, max voltage Vmax
Protection Typethermal overload protection, motor overheat, overcurrent, undercurrent, jam, long start, stall, rapid cycle lockout, rapid restart lockout, phase reversal, phase loss, phase sequence, phase unbalance, ground current
[Ie] Rated Operational Current80 A (at <50 °C) at <= 440 V AC-3, 80 A (at <50 °C) at <= 440 V AC-1, 80 A (at <50 °C) AC-3e
[Ui] Rated Insulation Voltage690 V IEC 60947-4-1600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameTPRPM
Fire Resistance960 °C UL 94850 °C IEC 60695-2-1650 °C IEC 60695-2-12
Number Of Poles3P
Power Dissipation In W2.3 W at Ie AC-3
Product NameTeSys island
Protective TreatmentTC
Resetremotely or automatically
Shock Resistance15 gn 11 ms) IEC 60068-2-27
Thermal Overload Classclass 5…30
Tightening Torque5-5 N.m 1-25 mm² hexagonal 4 mm8-8 N.m 25-35 mm² hexagonal 4 mm
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal136 mm
[Ith] Conventional Free Air Thermal Current80 A (at 50 °C)
[Uimp] Rated Impulse Withstand Voltage6 kV
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C without derating, -10-50 °C without derating-10-50 °C without derating, -10-50 °C without derating50-60 °C with current derating
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Ambient Air Temperature For Storage
- -25-70 °C-25-70 °C
- Environmental Disclosure
- ENVPEP1904009EN
- Halogen Content Performance
- Halogen free plastic parts product
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1904009EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1904009EN
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product CompatibilityTPRBC bus couplerTPRDG digital IO moduleTPRAN analog IO module
Relative Humidity5-95 %
General Attributes
- Product Or Component Type
- power module
Range Of ProductTeSys
ETIM
- ETIM 8
- EC001605
ETIM 9EC001605
Overview Attributes
- Device Presentation
- power module connected to an automation controller through a bus coupler, operational only when connected to a bus coupler
