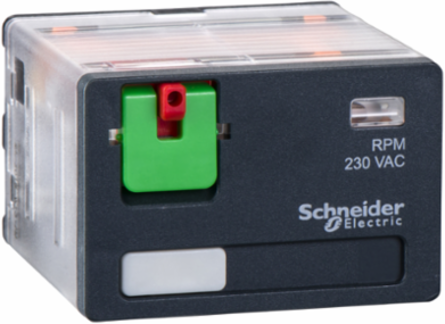

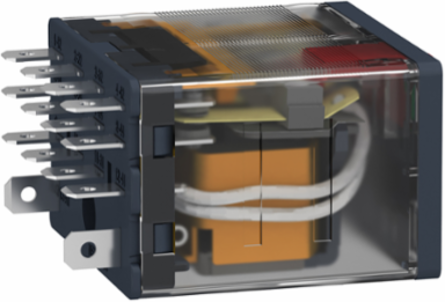

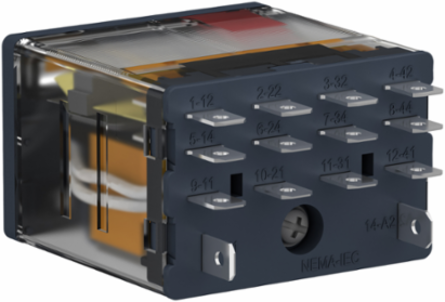

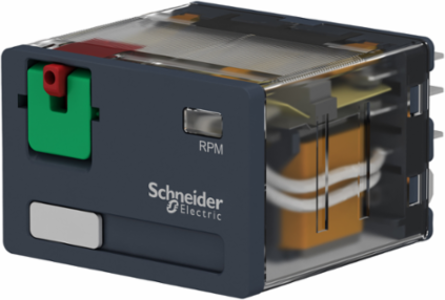

Schneider Electric RPM41P7 Harmony Electromechanical Relay, 15A, 4 C/O, 230V AC
- MPN: RPM41P7
- PPN: SCH-RPM41P7
CAD
$31.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RPM power plug-in relay has a coil control voltage of 230V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Utilisation Coefficient
- 20 %
- Range Of Product
- Harmony Electromechanical Relays
- Status Led
- without
- Series Name
- Power
- Device Short Name
- RPM
[Uc] Control Circuit Voltage230 V AC 50/60 Hz
Product Or Component Typeplug-in relay
Control Typelockable test button
Contacts Type And Composition4 C/O
[Ithe] Conventional Enclosed Thermal Current15 A -40-55 °C
Complementary
- Maximum Switching Capacity
- 3750 VA || 420 W
- Operating Rate
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Test Levels
- level A group mounting
- Contacts Material
- AgNi
- Shape Of Pin
- flat
- Net Weight
- 0.071 kg
- Average Resistance
- 7350 Ohm 20 °C +/- 15 %
- Rated Operational Voltage Limits
- 184...253 V AC
- [Ie] Rated Operational Current
- 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 20 ms at nominal voltage
- Drop-Out Voltage Threshold
- >= 0.15 Uc AC
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Safety Reliability DataB10d = 100000
Protection CategoryRT I
Electrical Durability100000 cycles resistive
Average Coil Consumption In Va2.5 60 Hz
Reset Time20 ms at nominal voltage
Maximum Switching Voltage250 V IEC
Device Presentationcomplete product
Pollution Degree3
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Operating Positionany position
Load Current15 A 250 V AC || 15 A 28 V DC
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
Environment
- Product Certifications
- UL || CSA || EAC
- Ambient Air Temperature For Operation
- -40-55 °C
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Ip Degree Of Protection
- IP40 IEC 60529
StandardsUL 508 || IEC 61810-1 || CSA C22.2 No 14
Dielectric Strength1500 V AC between contacts micro disconnection || 2000 V AC between coil and contact reinforced || 2000 V AC between poles basic
Shock Resistance15 gnin operation || 30 gnnot operating
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environmental DisclosureENVPEP1406038EN
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
