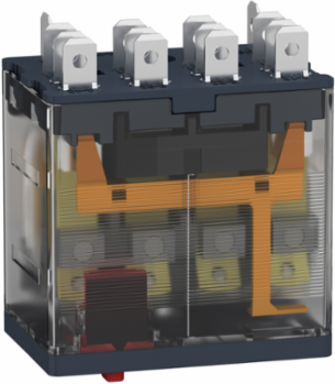

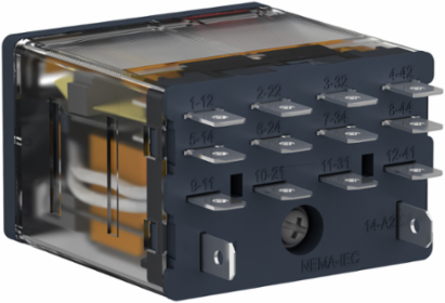

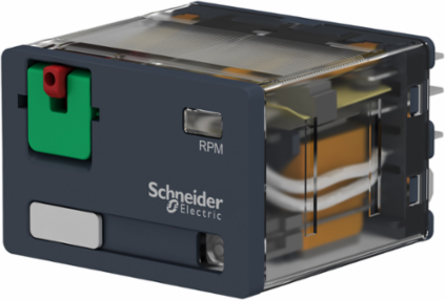

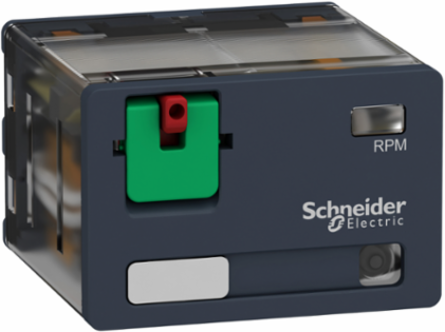

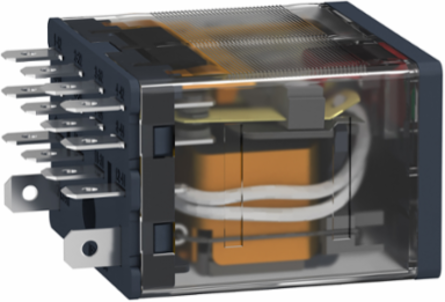

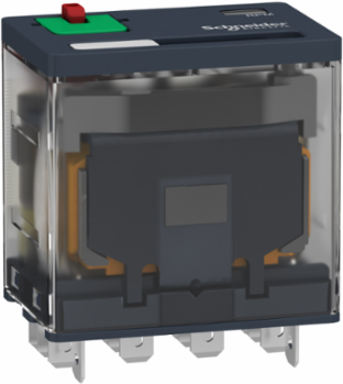

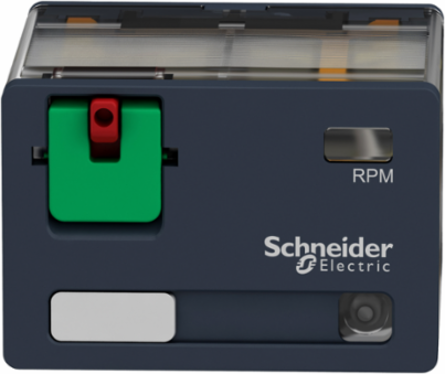

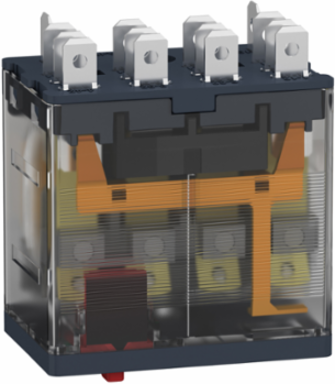

Schneider Electric RPM42B7 Harmony Electromechanical Relay, 15A, 4C/O, 24V AC with LED

MPN: RPM42B7
PPN: SCH-RPM42B7

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$36.57

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0

Documentation & Downloads

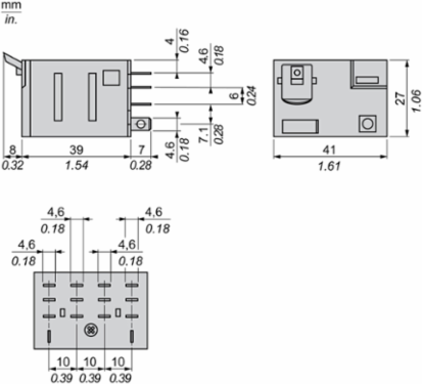

Specifications

Key Specifications

Country of Origin	China

Complementary Attributes

Maximum Switching Capacity	3750 VA, 420 W
Line Rated Current	15 A
Minimum Switching Capacity	170 mW 10 mA, 17 V

Control Circuit Type	AC
Maximum Switching Voltage	250 V IEC
Rated Operational Voltage Limits	19.2...26.4 V AC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Type	lockable test button, lockable test button
Operating Rate	<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Contacts Composition	4 C/O
[Ie] Rated Operational Current	15 A 28 V DC) NO IEC7.5 A 28 V DC) NC IEC, 15 A 277 V AC) UL15 A 28 V DC) UL, 15 A 250 V AC) NO IEC7.5 A 250 V AC) NC IEC
[Ui] Rated Insulation Voltage	250 V IEC300 V CSA, 300 V UL
Carbon Footprint Of The Distribution Phase [A4]	0.03958261982260174, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0001730847036899678
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	33 kg CO2 eq., 32.88575300743429
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Resistance	80 Ohm at 20 °C +/- 15 %
Contacts Material	AgNi
Electrical Durability	100000 cycles resistive
Mechanical Durability	10000000 cycles
Operating Position	any position
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT I
Relay Type	power relay
Returnability	Yes
Series Name	RPM series
Shock Resistance	15 gnin operation30 gnnot operating
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	34 kg CO2 eq.
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Pep Code	ENVPEP2506026EN
Pep Verification Date	2025-06-30
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
[Ithe] Conventional Enclosed Thermal Current	15 A -40-55 °C
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Dielectric Strength	1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced2000 V AC between poles with basic
Status Led	with, with
Certificate Agency	CSA, EAC, UL
[Uc] Control Circuit Voltage	AC 50/60 Hz, 24 V
Drop-out Voltage Threshold	>= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1273162013636865, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.8 kg CO2 eq., 0.7607374093121072
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Coil Consumption In Va	2.5 60 Hz
Compatibility Code	RPM
Contacts Type And Composition	4 C/O
Load Current	15 A 250 V AC15 A 28 V DC
Mounting Support	plug-in
Operating Time	20 ms at nominal voltage
Product Or Component Type	plug-in relay
Range Of Product	Harmony Electromechanical Relays
Reset Time	20 ms at nominal voltage
Safety Reliability Data	B10d = 100000
Shape Of Pin	flat (faston type)
Software Version	v6.3.0.1-4
Test Levels	level A group mounting
Utilisation Coefficient	20 %
Control Circuit Voltage	24 V
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %	67
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50 µs
Package Weight(Lbs)	71.000 g
Warranty (In Months)	18
