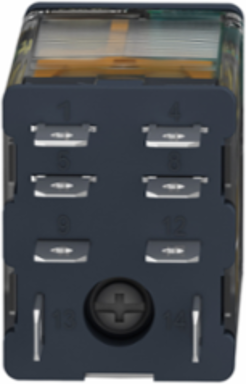

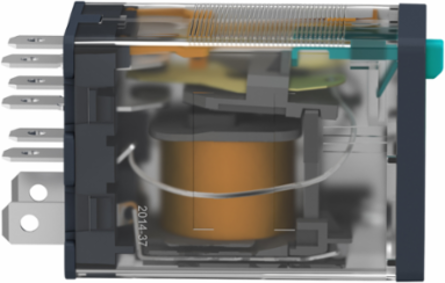

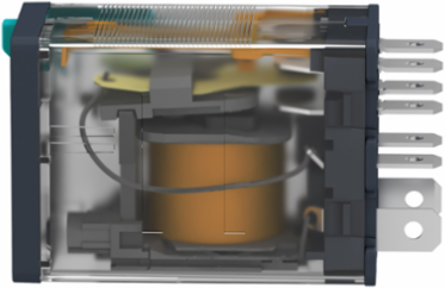

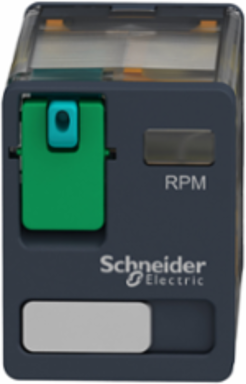

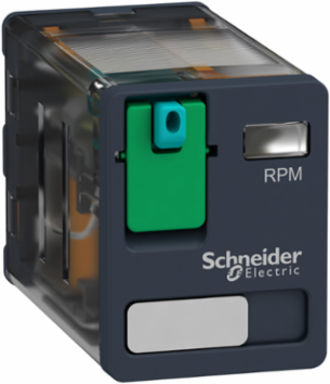

Schneider Electric RPM21BD Harmony Plug-In Relay, 15A, 24V DC, 2 C/O, Lockable Test Button
- MPN: RPM21BD
- PPN: SCH-RPM21BD
CAD
$21.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Singapore, United States
Complementary Attributes
- Maximum Switching Capacity
- 3750 VA, 420 W
- Line Rated Current
- 15 A
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Control Circuit TypeDC
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits19.2...26.4 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- lockable test button, lockable test button
- Load Current
- 15 A 250 V AC, 15 A 28 V DC
- Shock Resistance
- 15 gnin operation, 30 gnnot operating
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Certificate Agency
- EAC, CSA, UL
- [Uc] Control Circuit Voltage
- 24 V DC, 24 V
- Drop-out Voltage Threshold
- >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.1 Uc DC, >= 0.1 Uc DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0052298009, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.3731820802
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 7.72
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 0.85 W
- Compatibility Code
- RPM
- Contacts Type And Composition
- 2 C/O
- Mechanical Durability
- 10000000 cycles
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- power relay
- Returnability
- Yes
- Series Name
- RPM series
- Software Version
- EIME 5.7.0.2
- Test Levels
- level A group mounting
- Utilisation Coefficient
- 20 %
- Pep Code
- ENVPEP2506026EN
- Pep Verification Date
- 2018-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs
- Package Weight(Lbs)
- 39 g
- Warranty (In Months)
- 18
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 29.1248
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Status Ledwithout, without
Contacts Composition2 C/O
[Ie] Rated Operational Current15 A 28 V DC) NO IEC, 7.5 A 28 V DC) NC IEC15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 7.5 A 250 V AC) NC IEC
[Ui] Rated Insulation Voltage250 V IEC, 300 V CSA, 300 V UL
Carbon Footprint Of The Distribution Phase [A4]0.0050318889, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.000126916
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]11 kg CO2 eq., 11.4679406061
Local Publishable Date2026-03-26
Future Imap6.92
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance640 Ohm at 20 °C +/- 10 %
Contacts MaterialAgNi
Electrical Durability100000 cycles resistive
Mounting Supportplug-in
Operating Time20 ms at nominal voltage
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
Reset Time20 ms at nominal voltage
Safety Reliability DataB10d = 100000
Shape Of Pinflat (faston type)
Sustainable PackagingYes
Total Lifecycle Carbon Footprint12 kg CO2 eq.
Control Circuit Voltage24 V
Database Version2018-03
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
[Ithe] Conventional Enclosed Thermal Current15 A -40-55 °C
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]29.1248
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506026EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint11.8515112921
Environmental DisclosureENVPEP2506026EN
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2018-05-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
