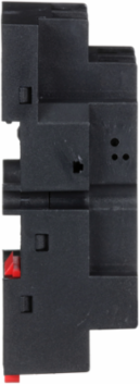

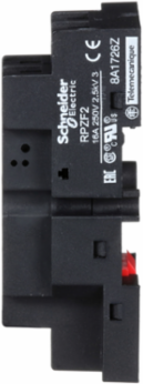

Schneider Electric RPZF2 Harmony Electromechanical Relay Socket, 16A, 250V AC, 30mm Width

  • MPN: RPZF2
  • PPN: SCH-RPZF2
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $20.08

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

    Features

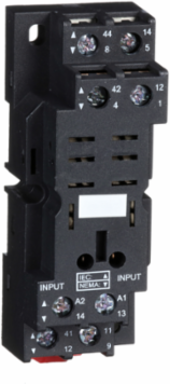

    • The Schneider RPZF2 is a high-performance mounting base designed specifically for the Harmony RPM2 series of power plug-in relays (2 C/O contacts). It acts as the interface between your control wiring and the relay, allowing for easy installation, testing, and replacement without disturbing the permanent cabinet wiring.

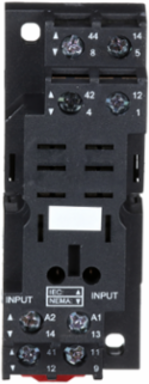

    • This socket features a mixed contact layout, where the coil terminals and contact terminals are separated into logical groups. This organization helps panel builders maintain a clean wire aesthetic and reduces the risk of wiring errors, especially in complex control loops where high-voltage power and low-voltage control signals are both present.

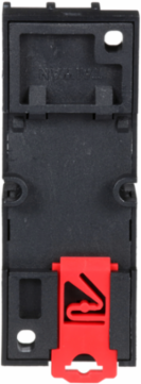

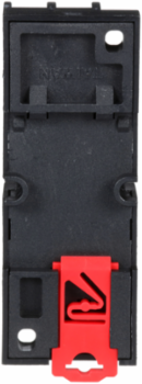

    • The RPZF2 offers dual mounting flexibility. It features an integrated clip for standard 35mm DIN rail (IEC 60715) for high-density industrial panels, but also includes mounting holes for direct screw attachment to a back panel. This makes it a versatile choice for both modern automated cabinets and older, custom-built enclosures.
    • Despite its compact size, the RPZF2 is rated for a conventional thermal current of 15 Amps and a maximum operating voltage of 250V. This high capacity makes it suitable for heavy-duty industrial applications, such as controlling large solenoid valves, heating elements, or providing intermediate switching for motor starters.
    • The socket is equipped with IP20-rated screw clamp terminals. These "captive" screws are designed to provide a high-pressure connection that resists loosening due to industrial vibration. The terminals are also "finger-safe," protecting maintenance staff from accidental contact with live electrical points while the relay is being serviced.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, Spain, France, Singapore, Taiwan, United States

    Complementary Attributes

    Line Rated Current
    16 A

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Tightening Torque
    < 1 N.m M3.5, < 1 N.m M3.5< 1 N.m M3.5, < 1 N.m M3.5
    Connections - Terminals
    - , flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - , solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - , flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - screw clamps terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG, - screw clamps terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG, - screw clamps terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG, - screw clamps terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG, - screw clamps terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWGscrew clamp terminals, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - screw clamps terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG, - screw clamps terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.005175138
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.5 kg CO2 eq., 0.5190791014
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Compatibility Code
    RPZ
    Contacts Type And Composition
    2 C/O
    Dielectric Strength
    2500 V
    Group Of Product
    RPM_2_C/O_SC_TER_MIX_FLAT
    Overvoltage Category
    III
    Product Or Component Type
    socket
    Returnability
    Yes
    Shape Of Pin
    flat
    Sustainable Packaging
    Yes
    Pep Code
    ENVPEP2506024EN
    Pep Verification Date
    2025-06-30
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    Electricity Mix; AC; consumption mix, at consumer; &lt;lt/&gt; 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; AC; consumption mix, at consumer; &lt;lt/&gt; 1kV; EU-27

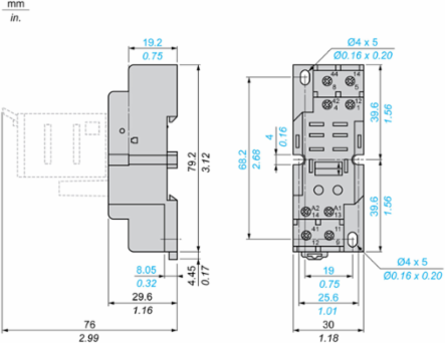

    Width Nominal
    30 mm
    [Ue] Rated Operational Voltage
    < 250 V< 250 V
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536904000
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Certificate AgencyUL, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.0069672613, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0004140983, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2026-03-26
    Stocking FlagN
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contact Terminal Arrangementmixed
    Device Short NameRPZ
    Fixing Modeby screw (panel)clip-on (35 mm symmetrical DIN rail)
    MarkingCE
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Electromechanical Relays
    Sale Per Indivisible Quantity10
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionRPZF1 is a socket that can be mounted with RPM1 plug in relays and protect persons during 20 years with the following dimensions 80mm x 31mm x 21mm.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: China
    Energy Model - Use [B6]Electricity Mix; AC; consumption mix, at consumer; &lt;lt/&gt; 1kV; EU-27
    Recyclability Potential In %37
    [Ith] Conventional Free Air Thermal Current16 A
    [Uimp] Rated Impulse Withstand Voltage4 kV
    Package Weight(Lbs)55 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-55 °C, -40-55 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    0.531635599
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Product Compatibility
    plug-in relay RPM 2 C/O
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2025-06-30
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Environmental DisclosureENVPEP2506024EN
    Ip Degree Of ProtectionIP20 conforming to IEC 60529
    Packaging Without Single Use PlasticYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2506024EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    socket
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8
    EC001456
    ETIM 9EC001456

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
