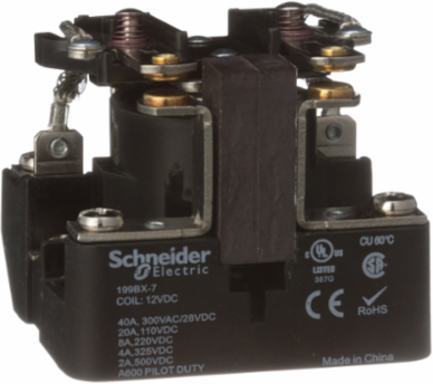

Schneider Electric 199BX-7 Power relay, SE Relays, DPST, 40A, 12 VDC, magnetic blowout, open type

MPN: 199BX-7
PPN: SCH-199BX-7

$99.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 12VDC with DPST silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay. Environmentally friendly design is compliant with the European Restriction of Hazardous Substances directive (RoHS).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Physical Attributes

Wire Stripping Length	8 mm

Complementary Attributes

Maximum Horse Power Rating	2 hp 120...600 V AC 50/60 Hz
Minimum Switching Current	1000 mA 5 V AC/DC

Maximum Switching Voltage	600 V DC

Important Information Attributes

Dielectric Strength	2200 V AC between coil and contact, 2200 V AC between poles1500 V AC between open contacts
Drop-out Voltage Threshold	>= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC>= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Associated Fuse Rating	50 A gG at 690 V coordination type 2 for power circuit
Contacts Material	silver alloy contacts
Cover Type	open cover
Power Consumption In Va	10-10 VA AC
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	No
Switch Function	DPST-NO
Voltage Range	0.85...1.1 Un AC/DC
[Ie] Rated Operational Current	40 A at 300 V AC (on resistive load) conforming to UL40 A at 28 V DC (on resistive load) conforming to UL20 A at 110 V DC (on resistive load) conforming to UL8 A at 220 V DC (on resistive load) conforming to UL4 A at 325 V DC (on resistive load) conforming to UL2 A at 500 V DC (on resistive load) conforming to UL
Connections - Terminals	screw terminal - 1 x 6-6 mm²
Contact Blow-out Type	magnetic
Package Weight(Lbs)	254.012 g
Warranty (In Months)	18

Certificate Agency	UL Listed, CSA, CE
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1918
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Kit Identifier	N
Average Impedance	4 mOhm
Contacts Type And Composition	1 NO
Electrical Durability	100000 cycles resistive DC load
Power Consumption In W	4-4 W DC
Product Or Component Type	power relay
Sustainable Packaging	No
Tightening Torque	1.2-1.7 N.m
Pep Code	ENVPEP2506027EN
[Ue] Rated Operational Voltage	6...600 V AC 50-60 Hz6...250 V DC
Short-circuit Current	3 kA
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536410050

Environment Attributes Main

Ambient Air Temperature For Operation	-55-55 °C, -55-55 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP2506027EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2506027EN

Ambient Air Temperature For Storage	-55-100 °C, -55-100 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
