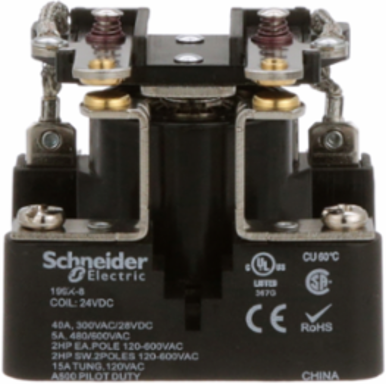

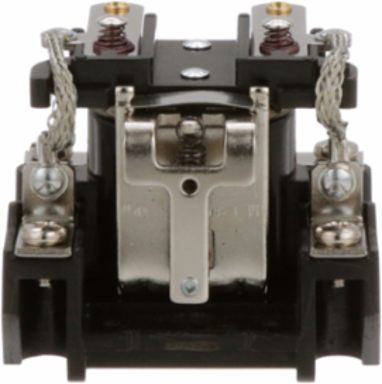

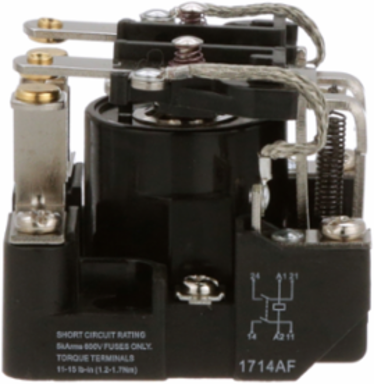

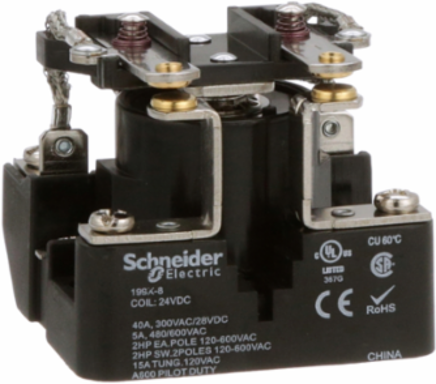

Schneider Electric 199X-8 Power Relay, DPST-NO, open cover type, screw terminal, 40A, 24V DC, 1NO
- MPN: 199X-8
- PPN: SCH-199X-8
CAD
$91.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. Feature-rich covers, mounting options and accessories to suit a multitude of applications. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600VAC, input coil voltage 24VDC with DPST silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay. 24VDC relay with DPST contacts and silver alloy contact configuration.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Physical Attributes
- Wire Stripping Length
- 8 mm
Complementary Attributes
- Maximum Horse Power Rating
- 2 hp 120...600 V AC 50/60 Hz
- Minimum Switching Current
- 1000 mA 5 V AC/DC
Maximum Switching Voltage600 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2200 V AC between coil and contact, 2200 V AC between poles1500 V AC between open contacts
- [Ie] Rated Operational Current
- 40 A at 300 V AC (on resistive load) conforming to UL40 A at 28 V DC (on resistive load) conforming to UL5 A at 480 V AC (on resistive load) conforming to UL, 5 A at 600 V AC (on resistive load) conforming to UL, 15 A at 120 V AC (tungsten filament) conforming to UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2083353109721523, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 126 kg CO2 eq., 126.3945088839626
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Impedance
- 4 mOhm
- Contacts Type And Composition
- 1 NO
- Electrical Durability
- 100000 cycles resistive DC load
- Power Consumption In W
- 4-4 W DC
- Product Or Component Type
- power relay
- Software Version
- v6.3.0.1-4
- Switch Function
- DPST-NO
- Total Lifecycle Carbon Footprint
- 129 kg CO2 eq.
- Pep Code
- ENVPEP2506027EN
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 66
- Connections - Terminals
- screw terminal - 1 x 6-6 mm²
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490050
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL Listed, CSA, CE
Drop-out Voltage Threshold>= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC>= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.47366724406882255
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.286443211158698
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1918
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Associated Fuse Rating50 A gG at 690 V coordination type 2 for power circuit
Contacts Materialsilver alloy contacts
Cover Typeopen cover
Power Consumption In Va10-10 VA AC
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Tightening Torque1.2-1.7 N.m
Voltage Range0.85...1.1 Un AC/DC
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionSE Relays 199 is open type heavy duty power relay offers high-capacity switching with high dielectric strength which helps to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh262.8
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ue] Rated Operational Voltage6...600 V AC 50-60 Hz6...250 V DC
Short-circuit Current3 kA
Package Weight(Lbs)295 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -55-55 °C, -55-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 129.36295465016227
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-55-100 °C, -55-100 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2506027EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2506027EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- power relay
Input Attributes
- Input Current
- 40 A
- Input Voltage
- 24 V DC
Input Resistance290 Ohm
