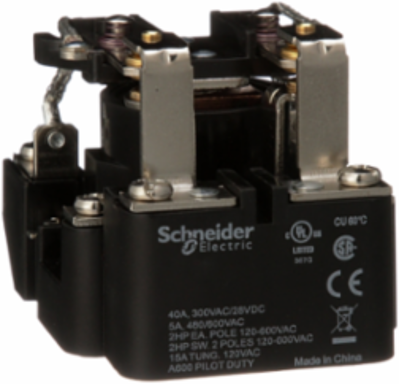

Schneider Electric 199AX-10 Power relay, SE Relays, DPST-NO, 40A, 240 VAC, open type, heavy duty
- MPN: 199AX-10
- PPN: SCH-199AX-10
CAD
$93.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 240VAC with DPST-NO silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
Physical Attributes
| Wire Stripping Length | 8 mm |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 2 hp 120...600 V AC 50/60 Hz |
|---|---|
| Minimum Switching Current | 1000 mA 5 V AC/DC |
| Maximum Switching Voltage | 600 V AC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 2200 V AC between coil and contact, 2200 V AC between poles1500 V AC between open contacts |
| [Ie] Rated Operational Current | 40 A at 300 V AC (on resistive load) conforming to UL40 A at 28 V DC (on resistive load) conforming to UL5 A at 480 V AC (on resistive load) conforming to UL, 5 A at 600 V AC (on resistive load) conforming to UL, 15 A at 120 V AC (tungsten filament) conforming to UL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1918 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Associated Fuse Rating | 50 A gG at 690 V coordination type 2 for power circuit |
| Contacts Material | silver alloy contacts |
| Cover Type | open cover |
| Power Consumption In Va | 10-10 VA AC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Switch Function | DPST-NO |
| Voltage Range | 0.85...1.1 Un AC/DC |
| [Ue] Rated Operational Voltage | 6...600 V AC 50-60 Hz6...250 V DC |
| Short-circuit Current | 3 kA |
| Package Weight(Lbs) | 240.406 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL Listed, CSA, CE |
| Drop-out Voltage Threshold | >= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC>= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Impedance | 4 mOhm |
| Contacts Type And Composition | 2 NO |
| Electrical Durability | 50000 cycles resistive |
| Power Consumption In W | 4-4 W DC |
| Product Or Component Type | power relay |
| Sustainable Packaging | No |
| Tightening Torque | 1.2-1.7 N.m |
| Pep Code | ENVPEP2506027EN |
| Connections - Terminals | screw terminal - 1 x 6-6 mm² |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490075 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -55-55 °C, -55-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP2506027EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2506027EN |
| Ambient Air Temperature For Storage | -55-100 °C, -55-100 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | power relay |
|---|
Input Attributes
| Input Current | 40 A |
|---|---|
| Input Voltage | 240 V AC |
| Input Resistance | 1200 Ohm |
|---|
