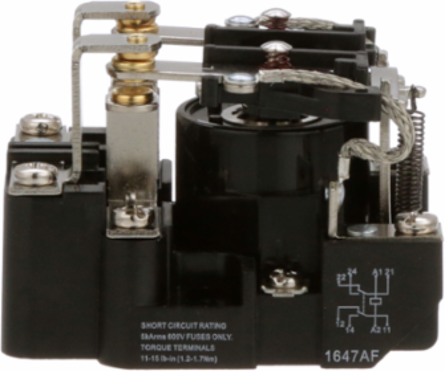

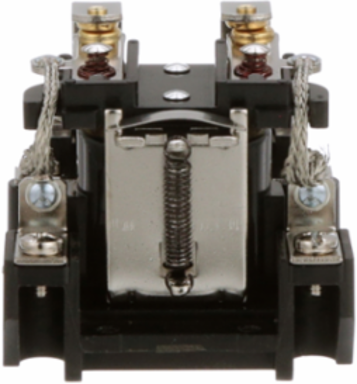

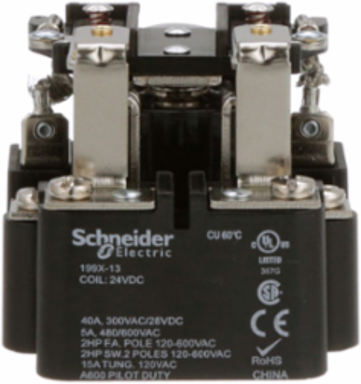

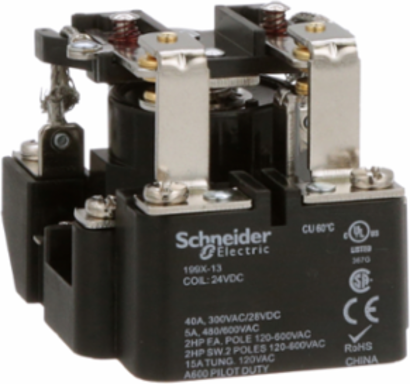

Schneider Electric 199X-13 Power Relay, DPST-NO, open cover type, screw terminal, 40A, 24V DC, 2 C/O
- MPN: 199X-13
- PPN: SCH-199X-13
CAD
$106.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 24VDC with DPDT silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, United States |
|---|
Physical Attributes
| Wire Stripping Length | 8 mm |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 2 hp 120...600 V AC 50/60 Hz |
|---|---|
| Minimum Switching Current | 1000 mA 5 V AC/DC |
| Maximum Switching Voltage | 600 V DC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 2200 V AC between coil and contact, 2200 V AC between poles1500 V AC between open contacts |
| [Ie] Rated Operational Current | 40 A at 300 V AC (on resistive load) conforming to UL40 A at 28 V DC (on resistive load) conforming to UL5 A at 480 V AC (on resistive load) conforming to UL, 5 A at 600 V AC (on resistive load) conforming to UL, 15 A at 120 V AC (tungsten filament) conforming to UL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1918 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Associated Fuse Rating | 50 A gG at 690 V coordination type 2 for power circuit |
| Contacts Material | silver alloy contacts |
| Cover Type | open cover |
| Power Consumption In Va | 10-10 VA AC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Switch Function | DPDT |
| Voltage Range | 0.85...1.1 Un AC/DC |
| [Ue] Rated Operational Voltage | 6...600 V AC 50-60 Hz6...250 V DC |
| Short-circuit Current | 3 kA |
| Package Weight(Lbs) | 263.086 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL Listed, CSA, CE |
| Drop-out Voltage Threshold | >= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC>= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Impedance | 4 mOhm |
| Contacts Type And Composition | 2 C/O |
| Electrical Durability | 100000 cycles resistive DC load |
| Power Consumption In W | 4-4 W DC |
| Product Or Component Type | power relay |
| Sustainable Packaging | No |
| Tightening Torque | 1.2-1.7 N.m |
| Pep Code | ENVPEP2506027EN |
| Connections - Terminals | screw terminal - 1 x 6-6 mm² |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490050 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -55-55 °C, -55-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP2506027EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2506027EN |
| Ambient Air Temperature For Storage | -55-100 °C, -55-100 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | power relay |
|---|
Input Attributes
| Input Current | 40 A |
|---|---|
| Input Voltage | 24 V DC |
| Input Resistance | 290 Ohm |
|---|
