Square D METSEEM3561A PowerLogic EM3500 DIN Rail Energy Meter, 20-5000 A, BACnet, Accuracy Class 0.5S
Square D METSEEM3561A PowerLogic EM3500 DIN Rail Energy Meter, 20-5000 A, BACnet, Accuracy Class 0.5S
- MPN: METSEEM3561A
- PPN: SCH-METSEEM3561A
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1240.66/ EA
Description

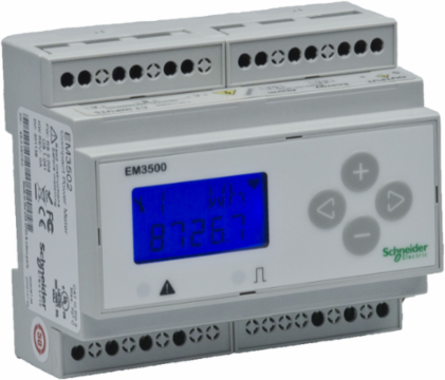

The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xxA models are designed for use exclusively with Rogowski coil CTs where integrator and power supply for the CTs are built into the meter. Not recommanded for high harmonic application. Current input from 20A to 5000A with the Rogowski coil, ANSI C12.20 0.5% accuracy, IEC 62053-22 class 0.5S. Native BACnet is provided to suit a wide variety of applications. Additional 2 pulse inputs provide an easy way to incorporate simple WAGES sensors using a BACnet system. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm and product weight 280 g.
Specifications
Specifications
- Product Or Component Type
- energy meter
- Range
- PowerLogic
- Metering Type
- current I1, I2, I3, Iavg || peak demand power PM, QM, SM || demand power P, Q, S || voltage U21, U32, U13, V1, V2, V3
Product NamePowerLogic EM3500
Device Short NameEM3561A
Complementary
- Network Frequency
- 60 Hz || 50 Hz
- [Ue] Rated Operational Voltage
- 90...347 V AC 50/60 Hz between phase and neutral UL || 156...600 V AC 50/60 Hz between phases UL || 90...300 V AC 50/60 Hz between phase and neutral CE || 125...300 V DC
- Mounting Support
- DIN rail
- Product Certifications
- CE IEC 61010 || cULus UL 508
- Communication Port Protocol
- BACnet MS/TP 9600 bauds...115200 bauds (automatic detection) - 2-wire
- Ride-Through Time
- 100 ms 120 V AC
- Number Of Inputs
- 2 pulse
- Measurement Current
- 20-5000 A
- Function Available
- fixed or rolling block || external synchronisation to communication
- Local Signalling
- red LED threshold reached || green flashing LED output signal
- Measurement Accuracy
- power +/- 0.5 % || energy +/- 0.5 %
- Poles Description
- 3P + N
- Analogue Input Type
- Rogowski coil 50...5000 A
- Device Application
- sub billing || partial meter
- Rated Voltage
- 90-347 V
Communication Port Supportscrew terminal block RS485
StandardsCSA C22.2 No 14-05 || IEC 61010-1 || UL 508
Power Consumption In Va5-5 VA 347 V AC between phase and neutral) || 5-5 VA 600 V AC between phases)
Type Of Measurementactive and reactive power total || active and reactive power per phase || apparent power total || apparent power per phase || power factor total || power factor per phase || peak demand power || current || voltage || frequency
Communication Servicetotal cumulated energy || total cumulated active energy
Display Digits5
Tamperproof Of Settingsprotected by access code
Information Displayedstatus and alert || communication with system || input/output status || error || Tx activity || Rx activity || instant power per usage
Mounting Modeby screws || clip-on
Power Consumption In W3 W 300-300 V
Technology Typeelectronic
Data Recordingenergy consumption logs
Display Typebacklit LCD
Accuracy Classclass 0.5S power IEC 62053-22 || class 0.5S energy IEC 62053-22 || class 0.5S power ANSI C12.20 || class 0.5S energy ANSI C12.20
Environment
- Ambient Air Temperature For Operation
- -30-70 °C
- 9 Mm Pitches
- 12
- Ambient Air Temperature For Storage
- -40-85 °C
- Width
- 107 mm
Height91 mm
Colourdark grey
Relative Humidity0-95 %
Depth59 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant with Exemptions
