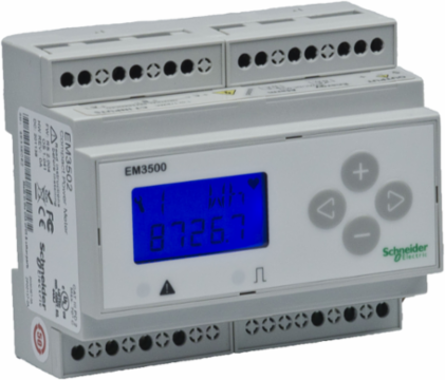

Square D METSEEM3560A PowerLogic EM3500 DIN Rail Meter, 20-5000 A, BACnet, 107 mm Width
- MPN: METSEEM3560A
- PPN: SCH-METSEEM3560A
CAD
$1126.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xxA models are designed for use exclusively with Rogowski coil CTs where integrator and power supply for the CTs are built into the meter. Not recommanded for high harmonic application. Current input from 20A to 5000A with the Rogowski coil, ANSI C12.20 0.5% accuracy, IEC 62053-22 class 0.5S. The data logging capability protects data in the event of a power failure. Native BACnet and phase alarms are all provided to suit a wide variety of applications. Additional pulse input provide an easy way to incorporate simple WAGES sensors using a BACnet system. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm and product weight 280 g.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada, Mexico, United States
Depth59 mm
Communications & Management Attributes
- Communication Service
- total cumulated energy, total cumulated active energy
- Communication Port Support
- screw terminal block RS485
Communication Port ProtocolBACnet MS/TP 9600 bauds...115200 bauds (automatic detection) - 2-wire
Physical Attributes
- Buffer Size
- 32-bit 3
Colordark grey
Complementary Attributes
- Rated Voltage
- 90-347 V
Important Information Attributes
- Device Application
- sub billing, partial meter
- Information Displayed
- status and alert, communication with system, input/output status, error, Tx activity, Rx activity, instant power per usage
- Measurement Accuracy
- power +/- 0.5 %, energy +/- 0.5 %
- Mounting Mode
- by screws, clip-on
- Type Of Measurement
- apparent power per phasepower factor per phase, active and reactive power total, active and reactive power per phase, apparent power total, power factor total, peak demand power, current, voltage, frequency
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9 kg CO2 eq., 0.8889475602366841
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 11 kg CO2 eq., 10.83731303937071
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2509001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2031
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- EM3560A
- Display Type
- Backlit LCD
- Measurement Current
- 20-5000 A
- Number Of Poles
- 3P + N
- Power Consumption In W
- 3 W 300-300 V
- Product Name
- PowerLogic EM3500
- Range
- PowerLogic
- Software Version
- v6.2.4
- Tamperproof Of Settings
- protected by access code
- Total Lifecycle Carbon Footprint
- 12 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 148.044
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 107 mm
- [Ue] Rated Operational Voltage
- 90...347 V AC 50/60 Hz between phase and neutral UL156...600 V AC 50/60 Hz between phases UL90...300 V AC 50/60 Hz between phase and neutral CE125...300 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Function Availableexternal synchronisation to communication, fixed or rolling block
Local SignallingRed LED threshold reached, Green flashing LED output signal
Metering Typepeak demand power PM, QM, SM, current I1, I2, I3, Iavg, demand power P, Q, S, voltage U21, U32, U13, V1, V2, V3
Network Frequency50 Hz, 60 Hz
Carbon Footprint Of The Distribution Phase [A4]0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.007375080016090249, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-07-09
Stocking FlagY
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Data Recordingenergy consumption logs
Display Digits5
Energy Efficiency OptimizedFalse
Mounting SupportDIN rail
Power Consumption In Va5-5 VA 347 V AC between phase and neutral)5-5 VA 600 V AC between phases)
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeenergy meter
ReturnabilityYes
Sustainable PackagingNo
Technology Typeelectronic
Pep CodeENVPEP2509001EN
Pep Verification Date2025-10-29
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Height Nominal91 mm
Certificate AgencyCE conforming to IEC 61010cULus conforming to UL 508
Ride-through Time100 ms 120 V AC
Package Weight(Lbs)544.311 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- 9 Mm Pitches
- 12
- Circularity Profile
- ENVEOLI2509001EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2025-10-29
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint11.733635679623482
Ambient Air Temperature For Operation-30-70 °C-30-70 °C
Environmental DisclosureENVPEP2509001EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2509001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- energy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 1 alarm output
Input Attributes
- Analogue Input Type
- Rogowski coil 50...5000 A
Number Of Inputs1 pulse
