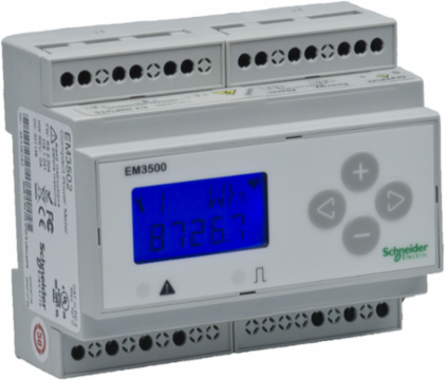

Schneider Electric METSEEM3502 PowerLogic EM3500 DIN Rail Energy Meter, 5-32000 A, Class 0.2S Accuracy
- MPN: METSEEM3502
- PPN: SCH-METSEEM3502
CAD
$604.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xx models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, according to the LVCT configuration in the HMI, ANSI C12.20 0.2% accuracy, IEC 62053-22 class 0.2S. 2 pulse outputs to communicate active and reactive energy, and 1 normaly closed contact for alarm. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- energy meter
- Range
- PowerLogic
- Metering Type
- demand power P, Q, S || peak demand power PM, QM, SM || current I1, I2, I3, Iavg || voltage U21, U32, U13, V1, V2, V3
Product NamePowerLogic EM3500
Device Short NameEM3502
Complementary
- Network Frequency
- 60 Hz || 50 Hz
- Output Voltage
- 30 V AC/DC
- Number Of Outputs
- 2 pulse || 1 alarm output
- Power Consumption In Va
- 5-5 VA 347 V AC between phase and neutral) || 5-5 VA 600 V AC between phases)
- Type Of Measurement
- active and reactive power total || active and reactive power per phase || apparent power total || apparent power per phase || power factor total || power factor per phase || peak demand power || current || voltage || frequency
- Ride-Through Time
- 100 ms 120 V AC
- Tamperproof Of Settings
- protected by access code
- Information Displayed
- status and alert || communication with system || input/output status || error || Tx activity || Rx activity || instant power per usage
- Mounting Mode
- clip-on || by screws
- Power Consumption In W
- 3 W 300-300 V
- Technology Type
- electronic
- Data Recording
- energy consumption logs
- Display Type
- backlit LCD
- Accuracy Class
- class 0.2S power IEC 62053-22 || class 0.2S energy IEC 62053-22 || class 0.2S power ANSI C12.20 || class 0.2S energy ANSI C12.20
[Ue] Rated Operational Voltage90...347 V AC 50/60 Hz between phase and neutral UL || 156...600 V AC 50/60 Hz between phases UL || 90...300 V AC 50/60 Hz between phase and neutral CE || 125...300 V DC
StandardsUL 508 || CSA C22.2 No 14-05 || IEC 61010-1
Mounting SupportDIN rail
Product CertificationsCE IEC 61010 || cULus UL 508
Communication Servicetotal cumulated active energy || total cumulated energy
Display Digits5
Measurement Current5-32000 A
Function Availablefixed or rolling block
Local Signallingred LED threshold reached || green flashing LED output signal
Measurement Accuracypower +/- 0.2 % || energy +/- 0.2 %
Poles Description3P + N
Analogue Input Typesplit core current transducer 0.333 V or 1 V
Device Applicationpartial meter || sub billing
Rated Voltage90-347 V
Environment
- Ambient Air Temperature For Operation
- -30-70 °C
- 9 Mm Pitches
- 12
- Ambient Air Temperature For Storage
- -40-85 °C
- Width
- 107 mm
Height91 mm
Colourdark grey
Relative Humidity0-95 %
Depth59 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant with Exemptions
