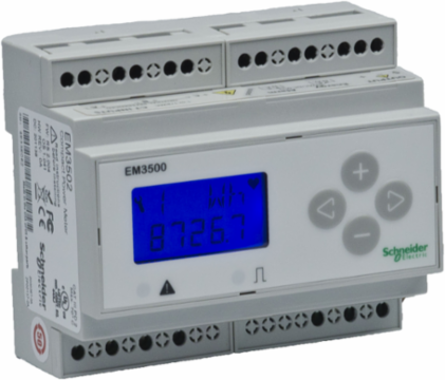

Schneider Electric METSEEM3550 PowerLogic EM3500 DIN Rail Energy Meter, 5-32000 A, Modbus, Dual Quadrant
- MPN: METSEEM3550
- UPC: 785901302605
- PPN: SCH-METSEEM3550
CAD
$678.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xx models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, according to the LVCT configuration in the HMI, ANSI C12.20 0.2% accuracy, IEC 62053-22 class 0.2S. Modbus, pulse output, and phase alarms are all provided to suit a wide variety of applications. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- energy meter
- Range
- PowerLogic
- Metering Type
- voltage U21, U32, U13, V1, V2, V3 || peak demand power PM, QM, SM || demand power P, Q, S || current I1, I2, I3, Iavg
Product NamePowerLogic EM3500
Device Short NameEM3550
Complementary
- Network Frequency
- 50 Hz || 60 Hz
- [Ue] Rated Operational Voltage
- 90...347 V AC 50/60 Hz between phase and neutral UL || 156...600 V AC 50/60 Hz between phases UL || 90...300 V AC 50/60 Hz between phase and neutral CE || 125...300 V DC
- Number Of Outputs
- 1 alarm output || 1 pulse
- Power Consumption In Va
- 5-5 VA 347 V AC between phase and neutral) || 5-5 VA 600 V AC between phases)
- Type Of Measurement
- active and reactive power total || active and reactive power per phase || apparent power total || apparent power per phase || power factor total || power factor per phase || peak demand power || current || voltage || frequency
- Communication Service
- total cumulated energy || total cumulated active energy
- Display Digits
- 5
- Measurement Current
- 5-32000 A
- Function Available
- fixed or rolling block || external synchronisation to communication
- Local Signalling
- red LED threshold reached || green flashing LED output signal
- Measurement Accuracy
- power +/- 0.2 % || energy +/- 0.2 %
- Poles Description
- 3P + N
- Analogue Input Type
- split core current transducer 0.333 V or 1 V
- Device Application
- sub billing || partial meter
- Rated Voltage
- 90-347 V
Communication Port Supportscrew terminal block RS485
StandardsUL 508 || IEC 61010-1 || CSA C22.2 No 14-05
Mounting SupportDIN rail
Product CertificationsCE IEC 61010 || cULus UL 508
Communication Port ProtocolModbus RTU 1200…38400 bps - 2-wire
Ride-Through Time100 ms 120 V AC
Tamperproof Of Settingsprotected by access code
Information Displayedstatus and alert || communication with system || input/output status || error || Tx activity || Rx activity || instant power per usage
Mounting Modeclip-on || by screws
Power Consumption In W3 W 300-300 V
Technology Typeelectronic
Data Recordingenergy consumption logs
Display Typebacklit LCD
Accuracy Classclass 0.2S power IEC 62053-22 || class 0.2S energy IEC 62053-22 || class 0.2S power ANSI C12.20 || class 0.2S energy ANSI C12.20
Environment
- Ambient Air Temperature For Operation
- -30-70 °C
- 9 Mm Pitches
- 12
- Ambient Air Temperature For Storage
- -40-85 °C
- Width
- 107 mm
Height91 mm
Colourdark grey
Relative Humidity0-95 %
Depth59 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant with Exemptions
