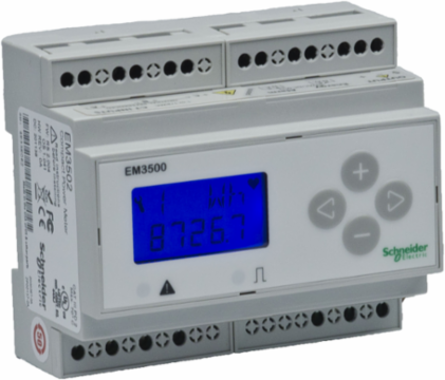

Schneider Electric METSEEM3555A PowerLogic EM3500 DIN Rail Energy Meter, 20-5000 A, Modbus, 3-Phase
- MPN: METSEEM3555A
- UPC: 785901657088
- PPN: SCH-METSEEM3555A
CAD
$858.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xxA models are designed for use exclusively with Rogowski coil CTs where integrator and power supply for the CTs are built into the meter. Not recommanded for high harmonic application. Current input from 20A to 5000A with the Rogowski coil, ANSI C12.20 0.5% accuracy, IEC 62053-22 class 0.5S. The data logging capability protects data in the event of a power failure. Modbus, pulse output, and phase alarms are all provided to suit a wide variety of applications. This model add a bi-directional monitoring feature designed expressly for renewable energy applications. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm and product weight 280 g.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth59 mm
Communications & Management Attributes
- Communication Of Data
- lifetime energy production, instantaneous and demand values
- Communication Port Protocol
- Modbus RTU 1200…38400 bps - 2-wire
Communication Servicetotal cumulated active energy, total cumulated energy
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Buffer Size
- 16-bit 10
Colordark grey
Complementary Attributes
- Rated Voltage
- 90-347 V
Important Information Attributes
- Data Recording
- energy consumption logs, time stamping
- Function Available
- fixed or rolling block, external synchronisation to communication
- Local Signalling
- Red LED threshold reached, Green flashing LED output signal
- Metering Type
- demand power P, Q, S, peak demand power PM, QM, SM, voltage U21, U32, U13, V1, V2, V3, active, reactive, apparent energy (signed, four quadrant), current I1, I2, I3, Iavg
- Network Frequency
- 60 Hz, 50 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.007375080016090249, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-06-18
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Short Name
- EM3555A
- Display Type
- Backlit LCD
- Measurement Current
- 20-5000 A
- Number Of Poles
- 3P + N
- Power Consumption In W
- 3 W 300-300 V
- Product Name
- PowerLogic EM3500
- Range
- PowerLogic
- Software Version
- v6.2.4
- Tamperproof Of Settings
- protected by access code
- Total Lifecycle Carbon Footprint
- 12 kg CO2 eq.
- Pep Code
- ENVPEP2509001EN
- Pep Verification Date
- 2025-10-29
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Height Nominal
- 91 mm
- Certificate Agency
- CE conforming to IEC 61010cULus conforming to UL 508
- Ride-through Time
- 100 ms 120 V AC
- Package Weight(Lbs)
- 907.185 g
- Warranty (In Months)
- 18
Device Applicationsub billing, partial meter
Information Displayedstatus and alert, communication with system, input/output status, error, Tx activity, Rx activity, instant power per usage
Measurement Accuracypower +/- 0.5 %, energy +/- 0.5 %
Mounting Modeby screws, clip-on
Type Of Measurementapparent power per phasepower factor per phase, active and reactive power total, active and reactive power per phase, apparent power total, power factor total, peak demand power, current, voltage, frequency
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9 kg CO2 eq., 0.8889475602366841
Carbon Footprint Of The Manufacturing Phase [A1 To A3]11 kg CO2 eq., 10.83731303937071
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2509001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2031
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Display Digits5
Energy Efficiency OptimizedFalse
Mounting SupportDIN rail
Power Consumption In Va5-5 VA 347 V AC between phase and neutral)5-5 VA 600 V AC between phases)
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeenergy meter
ReturnabilityYes
Sustainable PackagingNo
Technology Typeelectronic
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh148.044
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal107 mm
[Ue] Rated Operational Voltage90...347 V AC 50/60 Hz between phase and neutral UL156...600 V AC 50/60 Hz between phases UL90...300 V AC 50/60 Hz between phase and neutral CE125...300 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9028300000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- 9 Mm Pitches
- 12
- Circularity Profile
- ENVEOLI2509001EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2025-10-29
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint11.733635679623482
Ambient Air Temperature For Operation-30-70 °C-30-70 °C
Environmental DisclosureENVPEP2509001EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2509001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- energy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 1 alarm output, 1 pulse
Input Attributes
- Analogue Input Type
- Rogowski coil 50...5000 A
