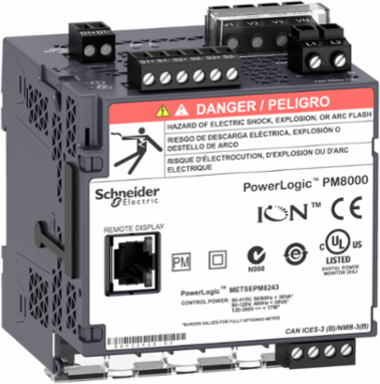

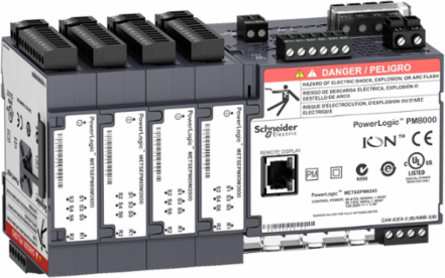

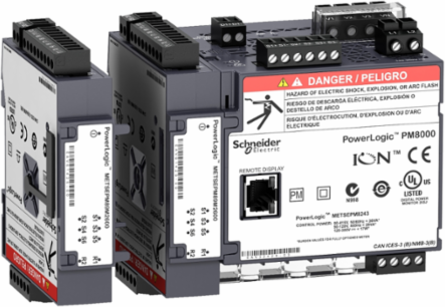

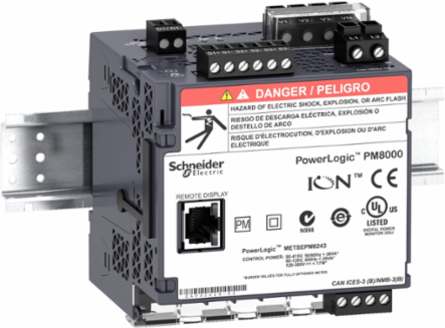

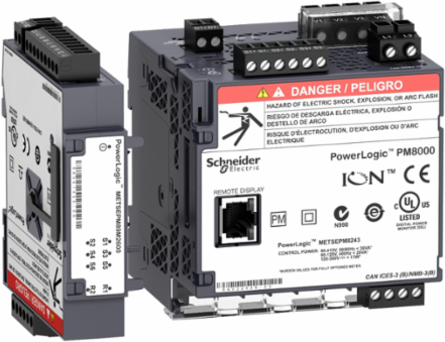

Schneider Electric METSEPM8243 PowerLogic PM8000 Meter, 512 MB Memory, 256 Samples/Cycle

  • MPN: METSEPM8243
  • PPN: SCH-METSEPM8243
  • UNSPSC: 39121603
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    PowerLogic PM8000 Meter, 512 MB Memory, 256 Samples/Cycle

    Features

    • Fast access to timely, critical information for energy, electrical network, and asset management
    • Help operations personnel avoid downtime by making power quality understandable
    • Makes energy and power quality actionable to support your op and sustainability goals
    • More detailed PQ compliance reporting, and expert level power quality and root cause analytics
    • Forecasting to help ensure your electrical system avoid overloads, unbalances or high peak demand
    • Ensure energy efficiency and optimized costs by understanding how energy is being consumed
    • Perform sub billing or allocate cost to encourage energy efficient behavior, reduce PF penalties
    • Support participation in demand response or variable tariff (TOU, RTP) programs
    • Maximize use of capacity by performing load studies and infrastructure expansion planning
    • Patented ION Programming allows for full alarm/calc customization, control and more

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginCanada, United States
    Depth90.8 mm
    Weight854 g

    Communications & Management Attributes

    Communication Port ProtocolModbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004
    Communication Network TypeIPv6 (internet protocol)
    Communication ServiceSMTP e-mail notification, DHCP, RSTP support, NTP time synchronization, PTP time synchronization
    Communication Port SupportETHERNETscrew terminal block RS485

    Complementary Attributes

    Line Rated Current1 A, 10 A, 5 A
    Us Rated Supply Voltage90...415 V AC 45...65 Hz +/- 10 %110...415 V DC +/- 10 %

    Important Information Attributes

    Persona Type IdsEU, LC, OM, OM8, PB, SI
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Cybersecuritypassword protection, port hardening, enable/disable communication ports, robust security logs, Syslog protocol support
    Device ApplicationWAGES metering, power monitoring
    Information Displayedvoltage, current, frequency, power, energy consumption, harmonic distortion
    Market Segmentbuildings large building network management: main incomerbuildings large building network management: sub feederbuildings multi-site network management: sub feederdata center network management: sub feederhealthcare network management: sub feederindustry network management: sub feederbuildings large building cost management: billing: sub feeder, buildings small building network management: main incomer, buildings medium building network management: main incomer, buildings multi-site network management: main incomer, data center network management: main incomer, healthcare network management: main incomer, industry network management: main incomer, utility: sub feeder
    Network Frequency50 Hz, 60 Hz
    Power Quality AnalysisEN 50160 2010 compliance reportIEEE 519 2014 compliance report, IEC 61000-4-30 class S power quality measurement, up to the 63rd harmonic, harmonic distortion, waveform capture, voltage sag and swell detection, programmablity (logic and math functions)IEC 62586 power quality monitoring, disturbance direction detection, rapid voltage change
    Web Servicescustomizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
    Carbon Footprint Of The Distribution Phase A40.5737616077149312, 0.6 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.5 kg CO2 eq., 0.45060626220352684
    Carbon Footprint Of The Use Phase B2 B3 B4 B6203 kg CO2 eq., 202.6431083769021
    Local Publishable Date2025-09-08
    Device TypeRelay, Control & Measurement - measuring, monitoring device
    TraceabilityYes
    Average Life Duration15 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1406022EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date2345
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Short NamePM8243
    Energy Efficiency OptimizedFalse
    Installation CategoryIII
    Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
    Mounting Modeclip-on
    Power Consumption In Va16 VA 230 V AC
    Product NamePowerLogic PM8000
    RangePowerLogic
    Sampling Rate256 samples/cycle
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Data Sourcereferent product
    Width Nominal90.5 mm
    Customs Code9028300000
    Packaging Weight In G285.1
    Functional Unit Quantity1
    Reference Lifetime In Y10
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Data Recordingharmonics logs, sag and swell logs, GPS synchronisation, time stamping, data logs, trending/forecasting, waveform logs, alarm logs, sequence of event recording, min/max of instantaneous values, event logs, 50 data recorders
    Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand conforming to IEEE C37.90.1
    Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
    Measurement Accuracycurrent +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 %
    Number Of Poles1P + N, + N, 3P
    Type Of Measurementapparent power per phase, rmspower factor per phase, rmscurrent, voltage, frequencyactive and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms
    Certificate AgencyCE, cULus, N998
    Carbon Footprint Of The End Of Life Phase C1 To C41.530093881154107, 2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A332 kg CO2 eq., 32.04606541588121
    Local Data StatusPublishable
    Return IndicatorY
    ServiceabilityYes
    Field Service DivisionDPIBS
    Service Catalog ItemFinished good
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticNo
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier2
    Function OptionStandard
    Compatibility CodePM8243
    Display TypeWithout Display
    Frequency Measurement Range42-69 Hz
    Measurement Current50-10000 mA
    Memory Capacity512 MB
    Mounting SupportDIN rail
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typepower meter
    ReturnabilityYes
    Software Versionv6.3.2-2
    Total Lifecycle Carbon Footprint237 kg CO2 eq.
    Database Version2025-04
    Height Nominal90.5 mm
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit DescriptionThe functional unit of the PowerLogic PM8000 series is a high-precision power and energy meter designed for advanced monitoring and analysis. It operates with a low power consumption of 4.7 W in active mode and supports 100% runtime, with a total energy consumption of 411.72 kWh for active components for 10 years. It features robust cybersecurity with secure protocols (HTTPS, SFTP), Syslog support, and 50 configurable user accounts. With 512 MB memory, it supports 50 data logs, waveform captures, alarms, energy trends, and custom web pages. It offers precise event timestamping to ±1 ms using PTP, NTP, IRIG-B, GPS, and network time sync. The device includes 3 digital inputs, 1 digital output, and supports up to 4 I/O modules (relays, analog/digital I/Os). It operates in harsh environments (-25 to +70°C, 5–95% humidity, up to 3000 m altitude) and mounts via DIN rail with optional remote display.
    Functional Unit Unitunit
    Recyclability Potential In %12

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Recycled Metal Content At Cr Level0 %
    Carbon Footprint237.24363554385585
    Circularity ProfileENVEOLI1406022EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude9842.52 ft (3000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity5-95 %
    Pep Verification Date2025-11-28
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Take BackNo
    China Rohs RegulationX
    Ambient Air Temperature For Operation-25-70 °C-25-70 °C
    Environmental DisclosureENVPEP1406022EN
    Ip Degree Of ProtectionIP30 conforming to IEC 60529
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1406022EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review

    General Attributes

    Product Or Component Typepower meter

    ETIM

    ETIM 8EC002301
    ETIM 10EC002301
    ETIM 9EC002301

    Output Attributes

    Number Of Outputs1 pulse

    Input Attributes

    Analogue Input Typevoltage (impedance 5 MOhm)current (impedance 0.3 mOhm)
    Number Of Inputs3 digital 30 V AC3 digital 60 V DC
