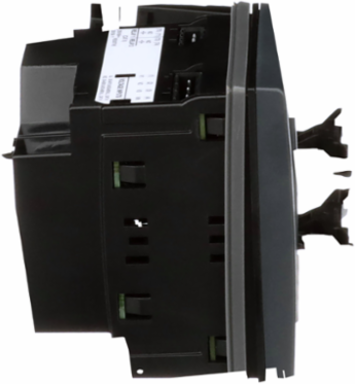

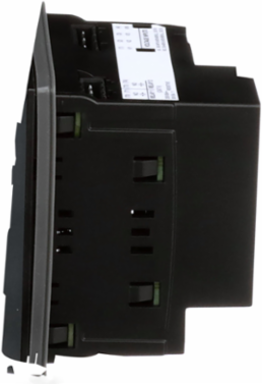

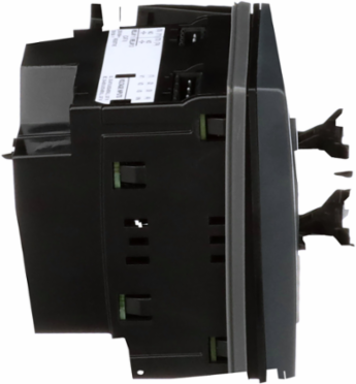

Schneider Electric METSEPM5330 PowerLogic PM5330 Power Meter 96mm x 96mm, Modbus, 256KB Memory, 31st Harmonic

MPN: METSEPM5330
PPN: SCH-METSEPM5330
UNSPSC: 39121106

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$1167.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

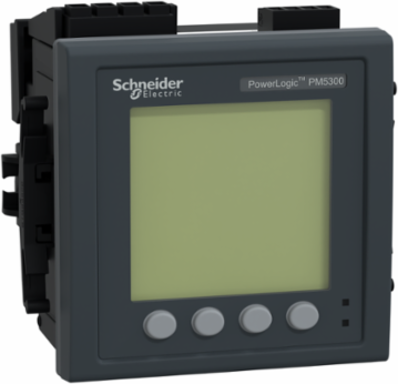

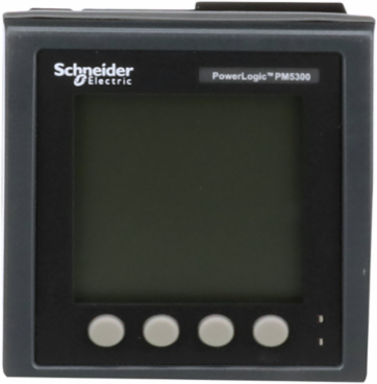

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).

Features

Feature-rich power and energy meters
Digital input and output for WAGES monitoring and control relays
Modbus 485 communication port for remote monitoring
Identify energy savings opportunities with precision accuracy of Class 0.5S
31st Harmonic measurement for Power Quality management

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Depth	72 mm

Weight	473 g

Communications & Management Attributes

Communication Port Protocol	Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V, JBUS

Communication Port Support	RS485

Complementary Attributes

Line Rated Current	1 A, 5 A
Us Rated Supply Voltage	90...450 V AC 45...65 Hz100...300 V DC

Maximum Power Consumption In Va	11 VA 415 V

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	RESIDENTIAL, COMMERCIAL, INDUSTRIAL
Data Recording	maintenance logs, time stamping, alarm logs, data logs, min/max of instantaneous values, event logs
Electromagnetic Compatibility	immunity to conducted disturbances - test level: 150 kHz...80 MHz conforming to IEC 61000-4-6electrical fast transient/burst immunity test conforming to IEC 61000-4-4radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3voltage dips and interruptions immunity test conforming to IEC 61000-4-11conducted and radiated emissions class B conforming to EN 55022immunity to conducted disturbances - test level: 150 kHz...80 MHz level 4 conforming to IEC 61000-4-6, electrical fast transient/burst immunity test level 3 conforming to IEC 61000-4-4radiated radio-frequency electromagnetic field immunity test level 4 conforming to IEC 61000-4-3voltage dips and interruptions immunity test class B conforming to IEC 61000-4-11, limits for harmonic current emissions class A conforming to IEC 61000-3-2electrostatic discharge level 4 conforming to IEC 61000-4-2, conducted RF disturbances level 3 conforming to IEC 61000-4-6magnetic field at power frequency level 4 conforming to IEC 61000-4-8limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3, electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2
Measurement Accuracy	active energy +/- 0.5 %reactive energy +/- 2 %, active power +/- 0.5 %, apparent power +/- 0.5 %frequency +/- 0.05 %power factor +/- 0.5, current +/- 0.5 %, voltage +/- 0.5 %, apparent energy +/- 0.5 %, reactive power +/- 2 %
Number Of Poles	+ N, 3P, 1P + N

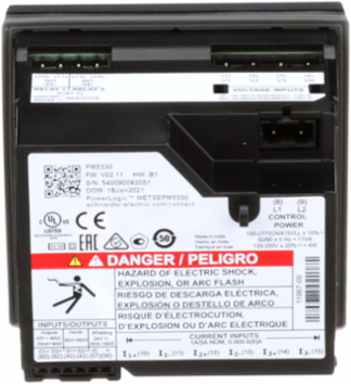

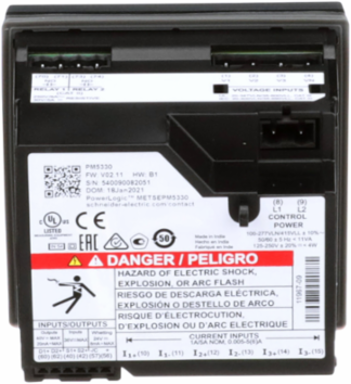

Connections Terminals	voltage circuit screw terminal block4control circuit screw terminal block2current transformer screw terminal block6, input/output circuit screw terminal block6, relay output screw terminal block4Ethernet network RJ45 connector
Carbon Footprint Of The Distribution Phase A4	0.06468366293780521, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.027104465221511866
Carbon Footprint Of The Use Phase B2 B3 B4 B6	313 kg CO2 eq., 313.20951556984613
Local Publishable Date	2026-01-09
Device Type	Relay, Control & Measurement - measuring, monitoring device
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	PM5330
Display Type	monochrome graphic LCD
Frequency Measurement Range	45-65 Hz
Measurement Current	5-8500 mA
Memory Capacity	256 kB
Mounting Support	framework
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	power meter
Returnability	Yes
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	328 kg CO2 eq.
Database Version	2024-01
Height Nominal	96 mm
Certificate Agency	CE conforming to IEC 61010-1cULus conforming to UL 61010-1
Customs Code	9028300000
Functional Unit Description	To measure and monitor electrical parameters over a 10-year period, the device consumes 3.25 watts in active mode (39.50% time) and 2.6 watts in standby mode (60% time), resulting in a total energy consumption of 249.11 kWh. It operates within a supply voltage range of 90-450V AC and 100-300V DC, with a network frequency of 50Hz or 60Hz. The device can measure current (5-8500mA), voltage (35-760V AC, 20-400V DC), and frequency (45-65Hz), ensuring accurate and reliable monitoring in accordance with relevant standards.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	469.1637

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Residential, Commercial, Industrial
Device Application	power monitoring, multi-tariff
Market Segment	buildings medium building cost management: billing: sub feederbuildings large building cost management: billing: sub feederbuildings multi-site cost management: billing: sub feederdata center cost management: billing: sub feederhealthcare cost management: billing: sub feederindustry cost management: billing: sub feederbuildings small building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feederdata center cost management: cost allocation: main incomerdata center cost management: cost allocation: sub feederhealthcare cost management: cost allocation: main incomerhealthcare cost management: cost allocation: sub feederindustry cost management: cost allocation: main incomerindustry cost management: cost allocation: sub feederbuildings small building network management: sub feederbuildings medium building network management: main incomerbuildings medium building network management: sub feederbuildings large building network management: sub feederbuildings multi-site network management: sub feeder, data center network management: sub feeder, healthcare network management: sub feeder, industry network management: sub feederbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing: main incomer, healthcare cost management: billing: main incomer, industry cost management: billing: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building network management: main incomer
Network Frequency	50 Hz, 60 Hz
Type Of Measurement	current, voltage, frequency, power factor, energy, active and reactive power
Ride Through Time	80 ms 120 V AC typical100 ms 230 V AC typical, 100 ms 415 V AC typical, 50 ms 125 V DC typical
Carbon Footprint Of The End Of Life Phase C1 To C4	1.0097374787289033, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	14 kg CO2 eq., 13.57565980110084
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Field Service Division	DPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1305025_V3
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2031
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	PM5330
Display Resolution	128 x 128 pixels
Energy Efficiency Optimized	False
Information Displayed	tariff 4)
Measurement Voltage	35-760 V AC 45...65 Hz between phases20-400 V AC 45...65 Hz between phase and neutral
Mounting Mode	flush-mounted
Power Quality Analysis	up to the 31st harmonic
Product Name	PowerLogic PM5000
Range	PowerLogic
Sampling Rate	64 samples/cycle
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	96 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	4

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C meter, -25-70 °C meter-25-70 °C meter, -25-70 °C meter
Take Back	No
China Rohs Regulation	X
Carbon Footprint	327.8867009778352
Environmental Disclosure	ENVPEP1305025EN
Ip Degree Of Protection	IP54 display: conforming to IEC 60529IP30 rear: conforming to IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1305025EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1305025_V3
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	6561.68 ft (2000 m) CAT III9842.52 ft (3000 m) CAT II
Packaging Without Single Use Plastic	No
Relative Humidity	5-95 % 50-50 °C non-condensing
Pep Verification Date	2025-09-24
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
