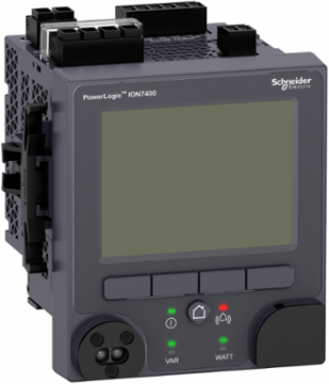

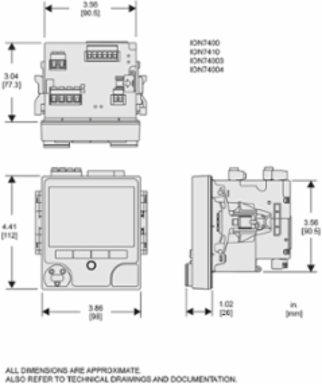

Schneider Electric METSEION7410 PowerLogic ION7400 Power Quality Meter, 512 MB, Integrated Display
- MPN: METSEION7410
- PPN: SCH-METSEION7410
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerLogic ION7400 utility feeder power meters combine capabilities not typically available in compact meters. They offers a hight flexibility and usability, along with accurate 3-phase energy and power measurements with data logging. Use Power Monitoring Expert software for data analysis or share operation data with SCADA systems through multiple communication channels and protocols. Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S). Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol. Ability to enable/disable communication ports, and 16 user configurable accounts. With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control power range of 20-60 VDC. Operating environment of -25 to +70C; Humidity rating of 5% to 95%; Altitude up to 3000 m. Panel mounting (1/4 DIN) with integrated display.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, France, Sweden, United States
Depth78.5 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004, Ansi C12.19, DLMS
- Communication Network Type
- IPv6 (internet protocol)
Communication ServiceSNMP, SMTP e-mail notification, RSTP support, DHCP, NTP time synchronization, PTP time synchronization
Communication Port SupportETHERNETscrew terminal block RS485optical probe fiber opticmini B USB USB
Complementary Attributes
- Line Rated Current
- 10 A, 1 A, 5 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cybersecurity
- enable/disable communication ports, port hardening, Syslog protocol support, password protection, robust security logs
- Device Application
- data aggregation, revenue billing, WAGES metering, power monitoring
- Information Displayed
- voltage, current, frequency, power, energy consumption, harmonic distortion
- Measurement Accuracy
- current +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 %
- Number Of Poles
- 1P + N, + N, 3P
- Type Of Measurement
- apparent power per phase, rmspower factor per phase, rmscurrent, voltage, frequencyactive and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms, active and reactive energy, apparent energy
- Certificate Agency
- CE, cULus, N998
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2.541872514560216, 3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 67 kg CO2 eq., 67.44861060732515
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310113EN_Web.pdf, PLSED310113EN
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1512006_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2333
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Display Resolution
- 320 x 240 pixels QVGA
- Energy Efficiency Optimized
- False
- Installation Category
- III
- Measurement Voltage
- 57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
- Mounting Mode
- flush-mounted
- Power Consumption In W
- 17 W
- Product Name
- PowerLogic ION7400
- Range
- PowerLogic
- Sampling Rate
- 256 samples/cycle
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To measure energy consumption and display the information on a screen, capable of operating within the following electrical parameters:& 10The ION7400 Power Meter operates within voltage ranges of 90-415V (50/60Hz) at <lt/>36VA, 90-120V (400Hz) at <lt/>28VA, and 120-300V at 17W, with current ratings of 1A for 0.5 seconds and 5A for 0.2 seconds, designed for 10 years of use at a 100% rate, consuming 5W in active mode (10% of the time) and 4W in standby mode (90% of the time), all in compliance with relevant standards.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 414.348
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 112 mm
- [Us] Rated Supply Voltage
- 20...60 V DC +/- 10 %
- Package Weight(Lbs)
- 1.03 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Data Recordingdata logs, sag and swell logs, waveform logs, trending/forecasting, sequence of event recording, GPS synchronisation, harmonics logs, time stamping, alarm logs, event logs, min/max of instantaneous values, 50 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand conforming to IEEE C37.90.1
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Network Frequency50 Hz, 60 Hz
Power Quality AnalysisEN 50160 2010 compliance reportIEEE 519 2014 compliance report, IEC 61000-4-30 class S power quality measurement, up to the 63rd harmonic, harmonic distortion, waveform capture, voltage sag and swell detection, programmablity (logic and math functions)IEC 62586 power quality monitoringIEC 61000-4-15 disturbance direction detection, rapid voltage change
Web Servicescustomizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
Carbon Footprint Of The Distribution Phase [A4]2.470758320097675, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.006931684146468386
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]142 kg CO2 eq., 142.0521727305075
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionDPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier3
Function OptionStandard
Device Short NameION7410
Display Typecolour TFT LCD
Frequency Measurement Range42-69 Hz
Measurement Current50-10000 mA
Memory Capacity512 MB
Mounting Supportframework
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typepower meter
ReturnabilityNo
Software Versionv6.2.4
Total Lifecycle Carbon Footprint215 kg CO2 eq.
Pep CodeENVPEP1512006EN
Pep Verification Date2025-03-21
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Canada, CA
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Chile, CL
Recyclability Potential In %4
Width Nominal98 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9028300000
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 214.520345856637
- Circularity Profile
- ENVEOLI1512006_V2
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 %
- Pep Verification Date
- 2025-03-21
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1512006EN
Ip Degree Of ProtectionIP54 front: conforming to IEC 60529IP30 body: conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1512006EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- power meter
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 1 pulse
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm)current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC3 digital 60 V DC
