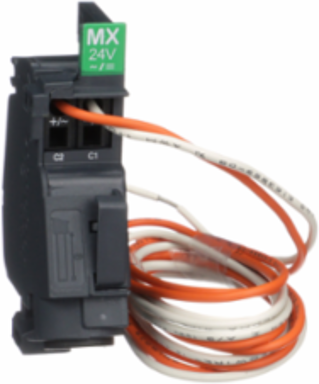

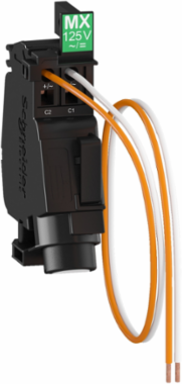

Schneider Electric LV426861 Pre-wired MX Shunt Trip Release 24VDC/24VAC for ComPacT NSXm

MPN: LV426861
PPN: SCH-LV426861
UNSPSC: 39121601

$1103.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 24 VAC 50/60Hz or 24VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.

Features

ComPacT NSXm has smaller frame size, incorporating new features and innovations
ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations
Gain up to 40% in space when using with integrated earth leakage protection
Reduce up to 40% mounting and cabling time
Select, configure and commission easily with EcoStruxure Customer Lifecycle Software
DIN rail mounting product
EverLink connectors with patented creep compensating technology
New spring type auxiliaries and new wireless indication contact

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	80 g

Physical Attributes

Wire Stripping Length	8 mm

Complementary Attributes

Impulse Duration	>= 20 ms, >= 20 ms

Uc Control Circuit Voltage	24 V AC 50/60 Hz, 24 V DC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Signal Type	impulse, maintained
Carbon Footprint Of The Distribution Phase A4	0.010461538461538461, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.043039999999999995, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0 kg CO2 eq., 0.00034253
Local Publishable Date	2025-07-10
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2311043EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1824
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Auxiliary Connection Terminal	pre-wired 0-0.8 mm² 18 AWG)stranded copper
Device Application	control
Energy Efficiency Optimized	False
Product Or Component Type	voltage release
Range Of Product	ComPacT NSXm
Returnability	No
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	2 kg CO2 eq.
Control Circuit Voltage 4	24 V
Control Circuit Voltage 4 Control Circuit Voltage	24 V
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Halogen Free Status	Product contains halogen above thresholds
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Commercial, Industrial
Voltage Release Type	opening coil, shunt trip release
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.12199999999999998
Carbon Footprint Of The Manufacturing Phase A1 To A3	2 kg CO2 eq., 2.070153846153846
Local Data Status	Publishable
Return Indicator	N
Traceability	No
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	standard
Device Short Name	MX
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	ComPact
Response Time	< 50 ms< 50 ms
Software Version	v5.9.4
Threshold Tripping Voltage	0.7 Un opening
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 4 Control Circuit Type	DC
Database Version	2022-01
Length Total	1 m
Customs Code	8536308000
Silicone Free	No
Functional Unit Description	To trip the circuit breaker when the control voltage rises above 70% of its rated voltage. & 10Impulse type must be superior or equal to 20ms or maintained.& 10This function is provided for 10 years.& 10It complies with IEC 60947-2 standard.
Functional Unit Unit	Unit
Recyclability Potential In %	33

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance	Product contains halogen above thresholds
Mercury Free	Yes
Carbon Footprint	2.2459979146153843
Environmental Disclosure	ENVPEP2311043EN
Halogen Content Performance	Product contains halogen above thresholds
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2311043EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Silicon Free	No
Circularity Profile	ENVEOLI2311043EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-03
Psr Version	PSR-0005-ed2-2016 03 29
