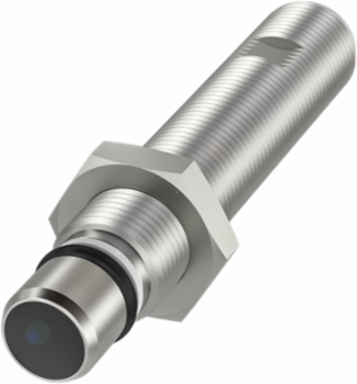

Balluff BES 516-300-S162-S4-D Pressure-rated Inductive Sensor, M12x1, Ø 12 x 69 mm, 500 bar
Balluff BES 516-300-S162-S4-D Pressure-rated Inductive Sensor, M12x1, Ø 12 x 69 mm, 500 bar
- MPN: BES 516-300-S162-S4-D
- PPN: BAL-BHS0021
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$499.23/ EA
Description
Engineered for precision and durability, the Balluff pressure-rated inductive sensor is an exceptional choice for demanding industrial applications. With a robust stainless steel housing and a compact design of 12 mm in diameter, this sensor can withstand pressures up to 500 bar while operating effectively in harsh environments, thanks to its IP68 rating. Designed for flush mounting, it operates within a wide temperature range of -25 to 80 °C and features a high switching frequency of 2000 Hz, making it ideal for various automation processes. The sensor's PNP normally open switching output and M12x1 connector ensure reliable connectivity and performance, meeting rigorous industry standards for safety and compliance.
Specifications
Specifications
- Country of Origin
- China
- Style
- M12x1
- Range
- 1.5 mm
- Switching frequency
- 2000 Hz
- Material sensing surface
- EP
- Operating voltage Ub
- 10...30 VDC
- Pressure rating max.
- 500 bar
- Approval/Conformity
- CE; UKCA; cULus; WEEE
DimensionØ 12 x 69 mm
Installationfor flush mounting
Switching outputPNP Normally open (NO)
Housing materialStainless steel
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature-25...80 °C
IP rating per IEC 60529IP68
