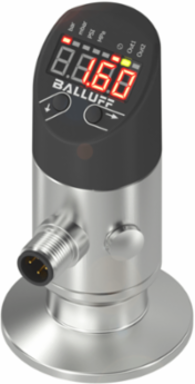

Balluff BSP M500-ZT010-P00S2B-S4-006 Front Flush Pressure Sensor, 0-0.5 Bar, Stainless Steel, IP67/IP69K

Front Flush Pressure Sensor, 0-0.5 Bar, Stainless Steel, IP67/IP69K
  • MPN: BSP M500-ZT010-P00S2B-S4-006
  • PPN: BAL-BSP0103

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1348.43/ EA

Specifications

Specifications

Measuring range
0-0.5 bar
Operating voltage Ub
18-30 VDC
Analog output
Analog, voltage/analog, current selectable 4…20 mA/0…10 V
Connection
Connector, M12x1-Male, 4-pin
Process connection material
Stainless steel (1.4404)
Media temperature
-10-125 °C
IP rating
IP67, IP69K when threaded in
Accuracy±0.5 % FSO BFSL
InterfaceIO-Link 1.1
Switching output2x PNP/NPN NO/NC switchable
Process connection1 1/2" Tri clamp
Housing materialStainless steel (1.4301)PE, High-density polyethylene
Ambient temperature-40-85 °C
Approval/ConformityCE, cULus, WEEE, Ecolab
