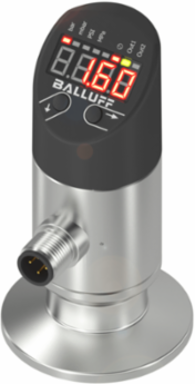

Balluff BSP B002-ZT009-P00S2B-S4-006 Front Flush Pressure Sensor, 1-1/2 Inch Tri Clamp, 0-2 Bar
- MPN: BSP B002-ZT009-P00S2B-S4-006
- PPN: BAL-BSP00ZM
CAD
$1147.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Front Flush Pressure Sensor, 1-1/2 Inch Tri Clamp, 0-2 Bar
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0-2 bar |
|---|---|
| Operating Voltage | 18-30 VDC |
| Switching Output | 2x PNP/NPN NO/NC switchable |
| Analog Output | Selectable 4-20 mA, 0-10 V |
| Overload Pressure | 10 bar |
| Resolution | B2 14 bits |
| Sampling Rate | 1 ms |
| Current Draw Max | 50 mA |
| Switching Frequency | 170 Hz |
| Media Temperature | -10-125 B0C |
| IP Rating | IP67 when threaded in |
| Protection Class | III |
| Weight | 350 g |
| Accuracy | B1 0.5 % FSO BFSL |
|---|---|
| Process Connection | 1 1/2" Tri clamp |
| Interface | IO-Link 1.1 |
| Burst Pressure | 15 bar |
| Repeat Accuracy | B2 0.2 % FSO |
| Response Time | 13 ms |
| Output Current Max | 150 mA |
| Load Cycles | 100 million |
| Temperature Coefficient | B2 0.15 % FSO/10K |
| Ambient Temperature | -40-85 B0C |
| Connection | Connector, M12x1-Male, 4-pin |
| Storage Temperature | -40-85 B0C |
| Material | Stainless steel (1.4301, 1.4435, 1.4404), PE High-density polyethylene |
