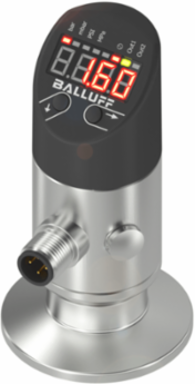

Balluff BSP B001-ZT010-P00S2B-S4-006 Front Flush Pressure Sensor, 0-1 bar, IP67, 1-1/2 Inch Tri Clamp
Balluff BSP B001-ZT010-P00S2B-S4-006 Front Flush Pressure Sensor, 0-1 bar, IP67, 1-1/2 Inch Tri Clamp
- MPN: BSP B001-ZT010-P00S2B-S4-006
- PPN: BAL-BSP0100
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1145.07/ EA
Description
Experience precision and reliability with the Balluff front flush pressure sensor, designed to meet the rigorous demands of industrial applications. This robust sensor features a measuring range of 0-1 bar and is constructed from high-quality stainless steel, ensuring durability in challenging environments. With an impressive IP67/IP69K rating when properly installed, it is well-suited for applications where moisture and dust resistance are paramount. The sensor offers versatile connectivity options, including an analog output that can be configured for voltage or current, and an IO-Link interface for seamless integration into automated systems. Additionally, it operates effectively across a wide temperature range, making it an ideal choice for various media types and conditions.
Specifications
Specifications
- Measuring range
- 0-1 bar
- Operating voltage Ub
- 18-30 VDC
- Analog output
- Analog, voltage/analog, current selectable 4…20 mA/0…10 V
- Connection
- Connector, M12x1-Male, 4-pin
- Process connection material
- Stainless steel (1.4404)
- Media temperature
- -10-125 °C
- IP rating
- IP67, IP69K when threaded in
Accuracy±0.5 % FSO BFSL
InterfaceIO-Link 1.1
Switching output2x PNP/NPN NO/NC switchable
Process connection1 1/2" Tri clamp
Housing materialStainless steel (1.4301)PE, High-density polyethylene
Ambient temperature-40-85 °C
Approval/ConformityCE, cULus, WEEE, Ecolab
