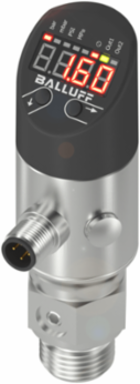

Balluff BSP B020-IV010-P00S2B-S4 Front Flush Pressure Sensor, 0-20 Bar, IP67, Stainless Steel
- MPN: BSP B020-IV010-P00S2B-S4
- PPN: BAL-BSP00ZZ
CAD
$883.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Front Flush Pressure Sensor, 0-20 Bar, IP67, Stainless Steel
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-20 bar
- Media Temperature
- -40-125 °C
- Switching Output
- 2x PNP/NPN NO/NC switchable
- Operating Voltage
- 18-30 VDC
- IP Rating
- IP67, IP69K when threaded in
- Process Connection
- G 1/2" (DIN 3852) front-flush
- Housing Material
- Stainless steel (1.4301), High-density polyethylene
Accuracy±0.5 % FSO BFSL
Ambient Temperature-40-85 °C
InterfaceIO-Link 1.1
Analog OutputVoltage/current selectable 4-20 mA / 0-10 V
ConnectionM12x1 Male, 4-pin connector
Process Connection MaterialStainless steel (1.4404)
Approval/ConformityCE, cULus, WEEE, Ecolab
