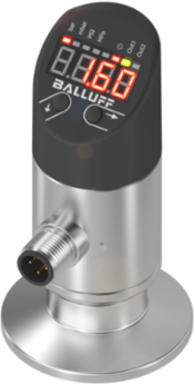

Balluff BSP M750-ZT009-P00S2B-S4-006 Front Flush Pressure Sensor, 1-1/2 Inch Tri Clamp, IP67, -40-85 C
- MPN: BSP M750-ZT009-P00S2B-S4-006
- PPN: BAL-BSP00ZT
CAD
$1361.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Front Flush Pressure Sensor, 1-1/2 Inch Tri Clamp, IP67, -40-85 C
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 18-30 VDC |
|---|---|
| Switching Output | 2x PNP/NPN NO/NC switchable |
| Ambient Temperature | -40 to 85 C |
| Burst Pressure | 7.5 bar |
| Response Time Max | 13 ms |
| Repeat Accuracy | 0.2 % FSO |
| Current Draw Max | 50 mA |
| Sampling Rate | 1 ms |
| Process Connection Material | Stainless steel (1.4404) |
| IP Rating | IP67 when threaded in |
| Analog Output | 4-20 mA / 0-10 V selectable |
| Approval/Conformity | CE, cULus, WEEE |
| Measuring Range | 0-0.75 bar |
|---|---|
| Accuracy | 0.5 % FSO BFSL |
| Media Temperature | -10 to 125 C |
| Overload Pressure | 5 bar |
| Switching Frequency | 170 Hz |
| Resolution | 14 bits |
| Output Current Max | 150 mA |
| Process Connection | 1 1/2 in Tri clamp |
| Housing Material | Stainless steel (1.4301), High-density polyethylene (PE) |
| Interface | IO-Link 1.1 |
| Connection | Connector, M12x1-Male, 4-pin |
| Weight | 350 g |
