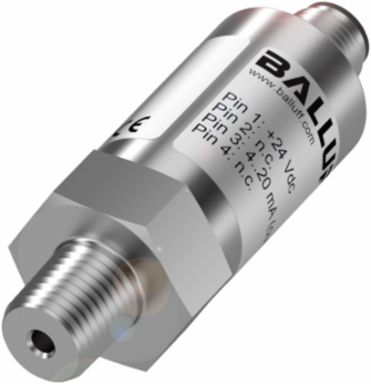

Balluff BSP B002-FV004-A04A1A-S4 Pressure Sensor, 0-2 Bar, Stainless Steel, M12 Connector, IP67
- MPN: BSP B002-FV004-A04A1A-S4
- PPN: BAL-BSP00JY
CAD
$280.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor, 0-2 Bar, Stainless Steel, M12 Connector, IP67
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-2 bar
- Accuracy
- ±0.5 % FSO BFSL
- Burst Pressure
- 10 bar
- Connection
- M12x1 Male, 4-pin
- Process Connection Material
- Stainless steel (1.4301)
- Material
- Stainless steel, Nickel-plated brass, Ceramic Al2O3, Fluoroelastomer
- Ambient Temperature
- -40 to 85 °C
- Current Draw
- 20 mA max.
- Storage Temperature
- -40 to 85 °C
- Sampling Rate
- 1 ms
- Load Cycles
- 100 million
Operating Voltage14-30 VDC
Overload Pressure4 bar
OutputAnalog, voltage 0–10 V
Process Connection1/4" NPT
Housing MaterialStainless steel (1.4301)
IP RatingIP67
Media Temperature-40 to 125 °C
Tightening Torque30 Nm
Temperature Coefficient≤ ±0.5 % FSO/10K
Resolution≤ 14 bits
Approval/ConformityCE, cULus, WEEE
