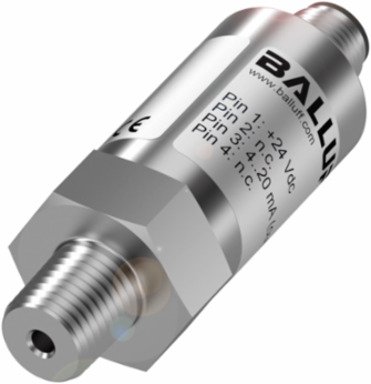

Balluff BSP B005-FV004-A04A1A-S4 Pressure Sensor, 0-5 Bar, Stainless Steel, IP67, M12 Connector
- MPN: BSP B005-FV004-A04A1A-S4
- PPN: BAL-BSP00JZ
CAD
$280.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensor, 0-5 Bar, Stainless Steel, IP67, M12 Connector
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0-5 bar |
|---|---|
| Operating Voltage | 14-30 VDC |
| Process Connection | 1/4" NPT |
| IP Rating | IP67 |
| Process Connection Material | Stainless steel (1.4301) |
| Ambient Temperature Range | -40-85 b0C |
| Material | Stainless Steel (1.4301), Nickel-plated brass, Fluoroelastomer, Ceramic Al2O3 |
| Current Draw Max | 20 mA |
| Overload Pressure | 12 bar |
| Tightening Torque Max | 30 Nm |
| Temperature Coefficient | B1 0.5 % FSO/10K |
| Resolution | B1 14 bits |
| Accuracy | b10.5 % FSO BFSL |
|---|---|
| Output | Analog voltage 0-10 V |
| Connection | M12x1 Male, 4-pin |
| Housing Material | Stainless steel (1.4301) |
| Media Temperature Range | -40-125 b0C |
| Approval/Conformity | CE, cULus, WEEE |
| Electrical Version | 3-wire |
| Burst Pressure | 15 bar |
| Weight | 120 g |
| Storage Temperature Range | -40-85 b0C |
| Load Cycles | 100 million |
| Sampling Rate | 1 ms |
