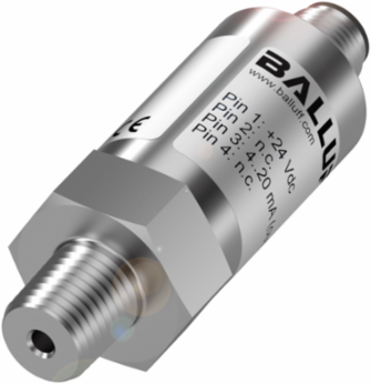

Balluff BSP B250-FV004-A04A1A-S4 Pressure Sensor, 0-250 bar, Stainless Steel, IP67, M12 Connector
- MPN: BSP B250-FV004-A04A1A-S4
- PPN: BAL-BSP00K4
CAD
$280.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor, 0-250 bar, Stainless Steel, IP67, M12 Connector
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-250 bar
- Operating Voltage
- 14-30 VDC
- Burst Pressure
- 750 bar
- Temperature Range Media
- -40 to 125 °C
- Connection
- M12x1-Male, 4-pin, A-coded connector
- Tightening Torque
- 30 Nm
- Process Connection Material
- Stainless steel (1.4301)
- IP Rating
- IP67
- Electrical Version
- 3-wire
- Approval/Conformity
- CE, cULus, WEEE
Accuracy±0.5 % FSO BFSL
Analog OutputAnalog, voltage 0–10 V
Overload Pressure400 bar
Temperature Range Ambient-40 to 85 °C
Process Connection1/4" NPT
Housing MaterialStainless steel (1.4301)
MaterialStainless steel (1.4301), Nickel-plated Brass, Ceramic Al2O3, Fluoroelastomer
Current Draw Max20 mA
Weight120 g
