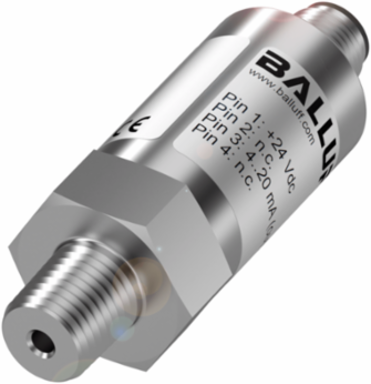

Balluff BSP B010-FV004-A04A1A-S4 Pressure Sensor 0-10 bar, IP67, M12x1 Connector, Stainless Steel
- MPN: BSP B010-FV004-A04A1A-S4
- PPN: BAL-BSP00K0
CAD
$280.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor 0-10 bar, IP67, M12x1 Connector, Stainless Steel
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-10 bar
- Accuracy
- ±0.5 % FSO BFSL
- Burst Pressure
- 35 bar
- Temperature Range - Ambient
- -40 to 85 °C
- Connection
- Connector, M12x1-Male, 4-pin, A-coded
- Housing Material
- Stainless steel (1.4301)
- IP Rating
- IP67
Operating Voltage14-30 VDC
OutputAnalog voltage 0-10 V
Overload Pressure20 bar
Temperature Range - Media-40 to 125 °C
Process Connection1/4" NPT
Process Connection MaterialStainless steel (1.4301)
ApprovalsCE, cULus, WEEE
