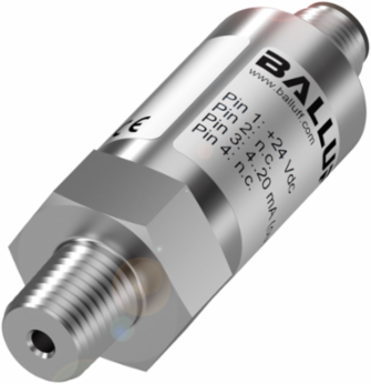

Balluff BSP B100-FV004-A04A1A-S4 Pressure Sensor, 0-100 bar, Stainless Steel, IP67, Analog Output
- MPN: BSP B100-FV004-A04A1A-S4
- PPN: BAL-BSP00K3
CAD
$280.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensor, 0-100 bar, Stainless Steel, IP67, Analog Output
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0-100 bar |
|---|---|
| Accuracy | 0.5 % FSO BFSL |
| Burst Pressure | 300 bar |
| Ambient Temperature | -40 to 85 C |
| Process Connection | 1/4" NPT |
| Current Draw Max | 20 mA |
| Weight | 120 g |
| Process Connection Material | Stainless steel (1.4301) |
| IP Rating | IP67 |
| Resolution | 14 bits |
| Load Cycles | 100 million |
| Operating Voltage | 14-30 VDC |
|---|---|
| Analog Output | 0-10 V |
| Overload Pressure | 200 bar |
| Media Temperature | -40 to 125 C |
| Connection | M12x1 Male, 4-pin |
| Electrical Version | 3-wire |
| Housing Material | Stainless steel (1.4301) |
| Tightening Torque Max | 30 Nm |
| Approval/Conformity | CE, cULus, WEEE |
| Sampling Rate | 1 ms |
