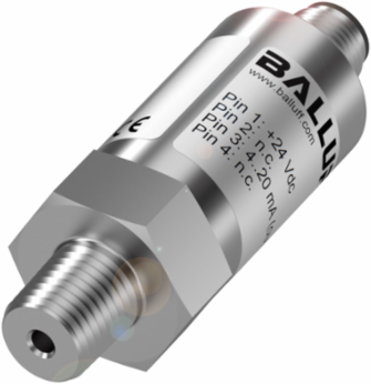

Balluff BSP B020-FV004-A04A1A-S4 Pressure Sensor, 0-20 Bar, 1/4 Inch NPT, IP67, Stainless Steel
- MPN: BSP B020-FV004-A04A1A-S4
- PPN: BAL-BSP00K1
CAD
$280.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor, 0-20 Bar, 1/4 Inch NPT, IP67, Stainless Steel
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-20 bar
- Operating Voltage
- 14-30 VDC
- Output Type
- Analog voltage 0-10 V
- Housing Material
- Stainless steel (1.4301)
- Connection
- Connector, M12x1-Male, 4-pin
- Ambient Temperature Range
- -40 to 85 °C
- Weight
- 120 g
Process Connection1/4 in NPT
Accuracy±0.5 % FSO BFSL
IP RatingIP67
Process Connection MaterialStainless steel (1.4301)
Media Temperature Range-40 to 125 °C
Approval/ConformityCE, cULus, WEEE
