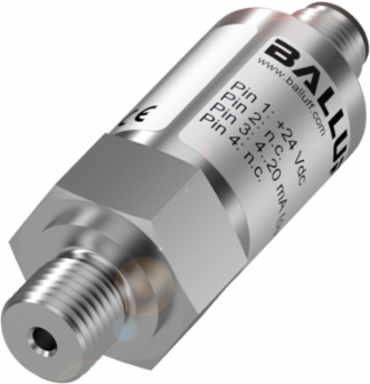

Balluff BSP B100-DV004-A04A1A-S4 Pressure Sensor, 0-100 bar, IP67, M12x1 Connection
- MPN: BSP B100-DV004-A04A1A-S4
- PPN: BAL-BSP00JN
CAD
$280.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensor, 0-100 bar, IP67, M12x1 Connection
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0-100 bar |
|---|---|
| Burst Pressure | 300 bar |
| Output Type | Analog voltage 0-10 V |
| Current Draw Max | 20 mA |
| Ambient Temperature | -40 to 85 6C |
| Process Connection | G 1/4" (DIN 3852) |
| Material | Stainless steel (1.4301) housing and process connection, Nickel-plated brass connector housing, Ceramic Al2O3 measuring cell, Fluoroelastomer gasket |
| Accuracy | 70.5% FSO BFSL |
|---|---|
| Overload Pressure | 200 bar |
| Operating Voltage | 14-30 VDC |
| IP Rating | IP67 |
| Media Temperature | -40 to 125 6C |
| Connection | M12x1-Male, 4-pin |
| Compliance | CE, cULus, WEEE |
