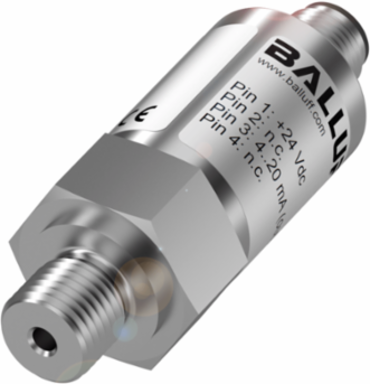

Balluff BSP V002-DV004-A04A1A-S4 Pressure Sensor - Measuring Range -1-2 Bar, Stainless Steel, IP67
- MPN: BSP V002-DV004-A04A1A-S4
- PPN: BAL-BSP00JE
CAD
$305.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor - Measuring Range -1-2 Bar, Stainless Steel, IP67
Documentation & Downloads
Specifications
Additional
- Measuring Range
- -1 to 2 bar
- Accuracy
- ±0.5 % FSO BFSL
- Process Connection
- G 1/4" (DIN 3852)
- Housing Material
- Stainless Steel (1.4301)
- IP Rating
- IP67
- Media Temperature Range
- -40 to 125 °C
- Connection
- Connector, M12x1-Male, 4-pin
Operating Voltage14 to 30 VDC
Analog Output0 to 10 V
MaterialStainless Steel (1.4301), Fluoroelastomer, Nickel-plated brass, Ceramic Al2O3
Process Connection MaterialStainless Steel (1.4301)
Ambient Temperature Range-40 to 85 °C
Approval/ConformityCE, cULus, WEEE
