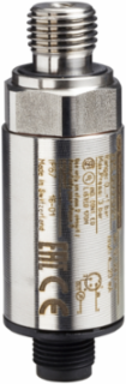

Telemecanique Sensors XMLG250D71 Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 20...250 bars, G 1/4 A (male), 24 V, 0...10 V

MPN: XMLG250D71
PPN: TES-XMLG250D71
UNSPSC: 39122210

$343.02

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 20...250 bars, G 1/4 A (male), 24 V, 0...10 V

Documentation & Downloads

Specifications

Key Specifications

Pressure Sensor Type	pressure transmitter
Type Of Output Signal	analogue
Range Of Product	Telemecanique Pressure sensors XM
Type Of Packing	individual
Fluid Connection Type	G 1/4A (male) DIN 3852-E
Controlled Fluid	air -15-125 °C) \|\| corrosive fluid -15-125 °C) \|\| hydraulic oil -15-125 °C) \|\| fresh water 0-125 °C)
Quantity Per Set	set of 1

Electrical Connection	1 male connector M12, 3 pins
Diameter	22.8 mm
Product Or Component Type	electronic pressure sensors
Pressure Sensor Name	XMLG
Pressure Sensor Size	250 bar
Analogue Output Function	0...10 V, 3 wires
[Us] Rated Supply Voltage	24 V DC 11.4-33 V)

Complementary

Height	58.1 mm
[Uimp] Rated Impulse Withstand Voltage	0.5 kV
Drift Of The Zero Point	+/- 0.015 % of measuring range/°C
Length	48.5 mm
Net Weight	0.095 kg
Surge Withstand	1 kV 42 Ohm EN/IEC 61000-4-5 \|\| 500 kV 12 Ohm EN/IEC 61000-4-5
Mechanical Durability	10000000 cycles
Measurement Accuracy	+/- 0.3 % of the measuring range
Electrical Circuit Type	control circuit
Maximum Permissible Accidental Pressure	560 bar
Pressure Setting Range	0-250 bar

Response Time On Output	< 2 ms
Repeat Accuracy	+/- 0.1 % of the measuring range
Materials In Contact With Fluid	FPM (Viton) \|\| stainless steel type AISI 303 \|\| PPS \|\| ceramic
Local Display	without
Current Consumption	< 20 mA
Scale Type	fixed differential
Operating Position	any position
Protection Type	reverse polarity \|\| load short-circuit
Drift Of The Sensitivity	+/- 0.015 % of measuring range/°C
Destruction Pressure	625 bar

Environment

Product Certifications	EAC \|\| CSA C22.2 No 14 \|\| UL 508
Ambient Air Temperature For Operation	-15-85 °C
Standards	EN/IEC 61326-2-3 \|\| CE
Resistance To Magnetic Fields	30 A/m 50 Hz EN/IEC 61000-4-8
Ip Degree Of Protection	IP66 conforming to EN/IEC 60529 \|\| IP67 conforming to EN/IEC 60529
Ambient Air Temperature For Storage	-40-85 °C
Protective Treatment	TC

Resistance To Conducted Disturbances	30 V 0.15-80 Hz)EN/IEC 61000-4-6
Resistance To Electromagnetic Fields	200 V/m 80-1000 Hz EN/IEC 61000-4-3
Shock Resistance	25 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance	20 gn 9-2000 Hz)EN/IEC 60028-2-6
Nema Degree Of Protection	NEMA 4
Resistance To Electrostatic Discharge	15 kV in air EN/IEC 61000-4-2 \|\| 8 kV on contact EN/IEC 61000-4-2
Resistance To Fast Transients	4 kV EN/IEC 61000-4-4

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
