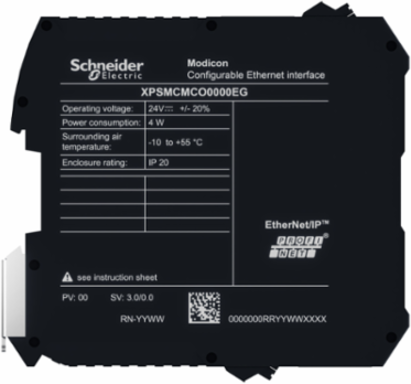

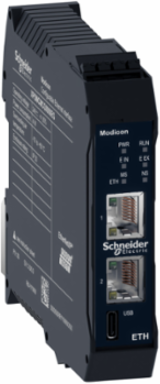

Schneider Electric XPSMCMCO0000EG expansion module, Modicon MCM, Ethernet/IP diagnostic, spring
- MPN: XPSMCMCO0000EG
- PPN: SCH-XPSMCMCO0000EG
CAD
$615.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

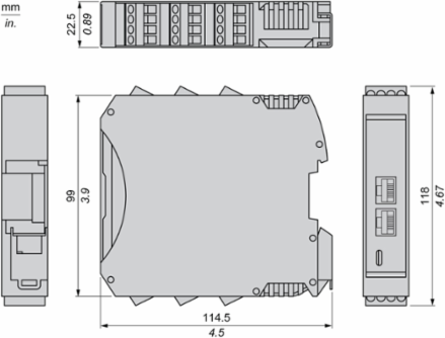

This communication module transmits the diagnostics and data on field buses or networks and belongs to the Modicon MCM, a range of modular safety controllers. This is a non-safe and multi-protocol communication module. It figures LEDs on its front face to display the status, removable spring clamp terminals for electrical connection and is IP20-rated. The network selection is configurable (software), allowing the safety controller to communicate via Ethernet/IP, Modbus TCP, EtherCAT, or PROFINET. It embeds a Mini USB 2.0 connector to receive the configuration done with SoSafe Configurable software, and 2 Ethernet-based RJ45 ports. It has a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It weighs 0.300kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is black. A safety control system can communicate across different networks without changing devices. It is certified by the TüV SÜD, RCM, cULus. It reaches Category 4, PL e, according to EN/ISO 13849-1, SIL CL 3, and IEC/EN 61508, IEC/EN 60261. It is compatible with a memory card and the backplane connectors. It is sold in a 1-piece package. It instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM range is designed to provide the most comprehensive protection for personnel and equipment. Modicon MCM range is designed to provide safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
Depth114.5 mm
Communications & Management Attributes
- Communication Port Protocol
- EtherNet/IP, EtherCAT, Modbus TCP, PROFINET
Complementary Attributes
- Maximum Cable Distance Between Devices
- 100 m
Important Information Attributes
- Cable Cross Section
- 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
- Vibration Resistance
- +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.07466476661982983, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.16714574664454726, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 127 kg CO2 eq., 127.22144640918272
- Local Publishable Date
- 2026-01-12
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- e
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Current Consumption
- 0.125 mA
- Electrical Connection
- spring terminal
- Insulation
- 250 V AC between power supply and housing IEC 61800-5-1
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Overvoltage Category
- II
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quality Labels
- CE
- Returnability
- Yes
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
- Sustainable Packaging
- No
- Transmission Rate
- 10/100 Mbit/s
- Pep Code
- ENVPEP2606033_V1
- Pep Verification Date
- 2026-06-22
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT
- Energy Model - Use [B6]
- Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27
- Recyclability Potential In %
- 21
- Width Nominal
- 22.5 mm
- Connections - Terminals
- 2 spring clamp terminals, removable terminal block
- Package Weight(Lbs)
- 223.000 g
- Warranty (In Months)
- 18
Local SignallingLED green PWR power ONLED green RUN operating, LED red E IN internal errorLED red E EX external error, LED green/red MS module statusLED green/red NS network status
Certificate AgencycULus, RCM, TÜV
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.47866606075528256
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.106589890664379
Local Data StatusPublishable
Pre Comm Date2024-06-27
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2403017EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2411
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Connector TypeRJ45
Device Short NameXPSMCM
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Method Of Accessserver
Number Of Port2
Power Dissipation In W3 W
Product Or Component Typenon-safe communication module
Range Of ProductModicon MCM
Service Life20 year(s)
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint133 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To enable communication and data exchange between safety controllers and fieldbus networks to 4W during 10 years at a 100% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh262.8
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal99 mm
[Us] Rated Supply Voltage24 V - 20...20 % DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620090
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 133.04851287386674
- Environmental Disclosure
- ENVPEP2606033_V1
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 10-95 %
- Pep Verification Date
- 2026-06-22
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Circularity ProfileENVEOLI2403017EN
Eu Rohs DirectiveCompliant
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2606033_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- non-safe communication module
Range Of ProductModicon MCM
ETIM
- ETIM 8
- EC001423
