Schneider Electric LUFP7 TeSys Ultra Communication Gateway 24VDC, Profibus DP & Modbus Connectivity
- MPN: LUFP7
- PPN: SCH-LUFP7
CAD
$1860.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

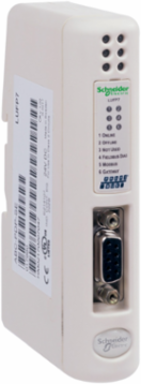

TeSys U communication gateway for interfacing groups of up to 8 x TeSys U starter controllers connected on the same Modbus serial link to a Profibus DP field bus. On front side, it provides the Profibus DP connector, and device and communication LED status. It provides on the bottom 2 x RJ45 connectors for Modbus serial link and PC link, a connector for a 24V DC external power supply. It can be used for interfacing ATS48 soft starters and ATV31 variable speed drives to Profibus DP. To be clipped on a 35mm DIN rail.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, France, Sweden
Complementary Attributes
- Maximum Number Of Connections
- <= 8 Modbus slaves, <= 8 Modbus slaves
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bus Type
- Profibus DP, Modbus
- Current Consumption
- 100 mA typical, 280 mA maximum
- Services
- command Profibus DP 122 configurable words, configuration and adjustment Fipio by gateway mini messaging facility, monitoring Profibus DP 122 configurable words
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LUF
- Local Signalling
- LED front panel
- Product Or Component Type
- communication gateway
- Range Of Product
- TeSys U
- Sustainable Packaging
- No
- [Us] Rated Supply Voltage
- 24 V DC +/- 10 %
- Package Weight(Lbs)
- 220.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Connector Typefemale SUB-D 9 field bus, RJ45 Modbus, RJ45 to a PC
Electromagnetic Compatibilityelectromagnetic emission IEC 50081-2, electromagnetic immunity IEC 61000-6-2
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1852
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeLUF
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeTeSys
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Installation
- 5-50 °C
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
Product CompatibilityATV31, ATS48, TeSys U starter-controllers
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
General Attributes
