Balluff

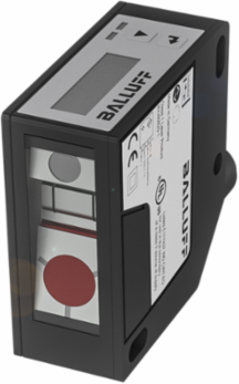

Balluff BOD 24K-LPI08-S4 Photoelectric distance sensors - BOD002N

Photoelectric distance sensors - BOD002N
  • MPN: BOD 24K-LPI08-S4
  • PPN: BAL-BOD002N

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2616.95/ EA

Description

Photoelectric distance sensors - BOD002N

Specifications

Specifications

Country of Origin
Germany
Dimension
50 x 21 x 50 mm
Principle of operation
Photoelectric sensor
Beam characteristic
Divergent
Light spot size
1.2 x 1.2 mm at 650 mm
Accuracy
±1 %
Resolution
≤ 100 µm
Housing material
Plastic
Approval/Conformity
CE; cULus; WEEE
Series24K
InterfaceIO-Link 1.1; Analog, voltage/Analog, current selectable 4…20 mA; 0…10 V; 2x PNP/NPN NO/NC
Principle of optical operationTriangulation
Light typeLaser Red light
Range50...650 mm
Repeat accuracy± 50 µm
ConnectionConnector, M12x1-Male, 4-pin
Operating voltage Ub18...30 VDC

Downloads
