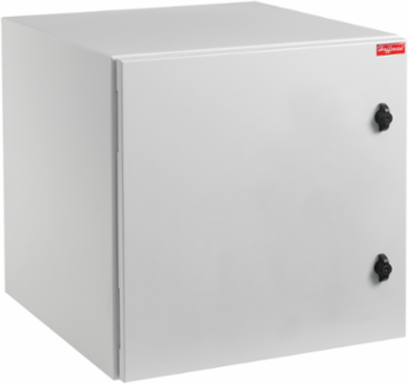

Nvent Hoffman PTRS362412G4 ProTek Single-Door Solid Type 4 12, 36.30x23.62x11.81, Lt Gray, Steel
Nvent Hoffman PTRS362412G4 ProTek Single-Door Solid Type 4 12, 36.30x23.62x11.81, Lt Gray, Steel
- MPN: PTRS362412G4
- UPC: 783510235789
- PPN: HOF-PTRS362412G4
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1687.54/ EA
Description
ProTek Single-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Single-Door Solid Type 4 12, PTRS362412G4 item measures 36.30x23.62x11.81in. with a material of Steel colored Lt Gray.
Features
- Solid-door cabinet provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Protection Rating
- NEMA Type 12
- Color Code
- RAL 7035
- Rack Units
- 19
- IP Rating
- IP66
- Sub Brand
- ProTek
- Width
- 23.62 in
- Material
- Steel
- Color
- Lt Gray
Height (H)922
Depth (D)300
Product FamilyProTek
Thickness (T)1.9
Additional Rack AnglesPTRA36T or PTRA36S
Weight85
Height36.3 in
Depth11.81 in
FinishLt Gray
NEMA Rating12 Indoor, dust-resistant
