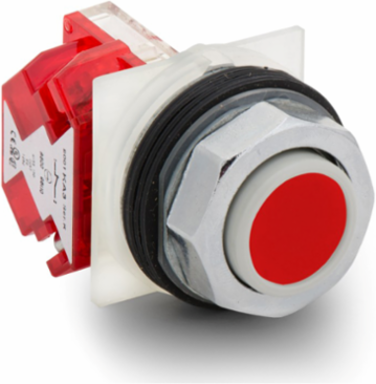

Harmony Red Projecting Push Button 30 mm Spring Return 1 NC
Schneider Electric

Schneider Electric 9001KR3RH6 Harmony Red Projecting Push Button 30 mm Spring Return 1 NC

  • MPN: 9001KR3RH6
  • UPC: 785901042761
  • PPN: SCH-9001KR3RH6
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $77.25

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony 9001K, modular projecting red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NC contact and uses screw-clamp terminals. This projecting push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Mexico, United States

    Physical Attributes

    Cad Overall Depth
    56 mm
    Cad Overall Width
    48 mm
    Cad Overall Height45 mm
    Size30 mm

    Complementary Attributes

    Rated Breaking Capacity
    3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Operator Profile
    projecting, red projecting, unmarked
    [Icm] Rated Short-circuit Making Capacity
    12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
    Terminals Description Iso N°1
    (21-22)NC, (21-22)NC
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2503027EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Bezel Material
    metal
    Contact Operation
    standard
    Contacts Type And Composition
    1 NC
    Electrical Shock Protection Class
    class II conforming to IEC 61140
    Mounting Diameter
    30 mm
    Operator Additional Information
    without guard
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Protective Treatment
    TC
    Returnability
    No
    Shape Of Signaling Unit Head
    octagonal
    Sustainable Packaging
    Yes
    Type Of Operator
    spring return
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    [Ith] Conventional Free Air Thermal Current
    10 A
    [Uimp] Rated Impulse Withstand Voltage
    2.5 kV IEC 60947-1
    Connections - Terminals
    screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Certificate AgencyNEMA, UL 508
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility Code9001K
    Contacts Materialsilver alloy contacts
    Device Short Name9001K
    Mechanical Durability5000000 cycles
    Operating Positionany position
    Positive Openingwith IEC 60947-5-2
    Product Or Component Typepush-button
    Range Of ProductHarmony 9001K
    Shape Of Screw Headcross slotted
    Shock Resistance50 gn IEC 60068-2-27
    Tightening Torque0.8-0.8 N.m IEC 60947-1
    Vibration Resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Pep CodeENVPEP2503027EN
    [Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
    Cap/Operator Or Lens Colourred
    Short-circuit Protection10 A cartridge fuse IEC 60947-5-1
    Package Weight(Lbs)117.934 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Environmental Disclosure
    ENVPEP2503027EN
    Ip Degree Of Protection
    IP66 IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP2503027EN
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Circularity ProfileENVEOLI2503027EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Product Or Component Type
    push-button
    Range Of ProductHarmony 9001K

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
