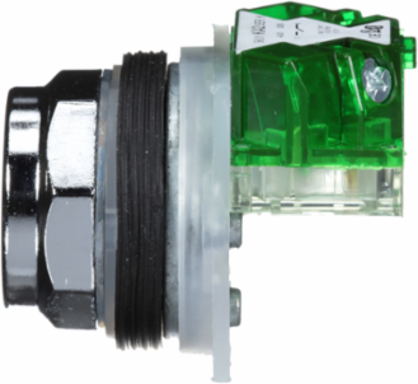

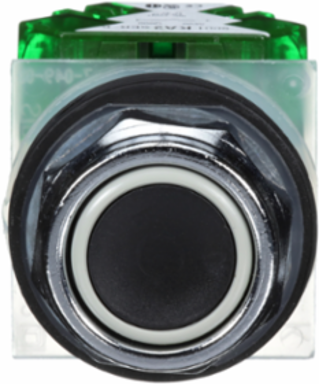

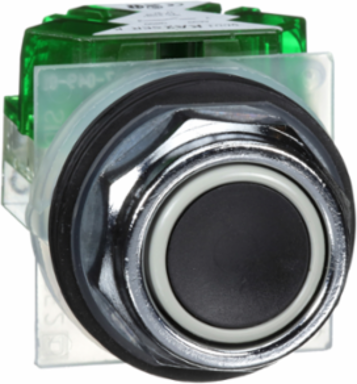

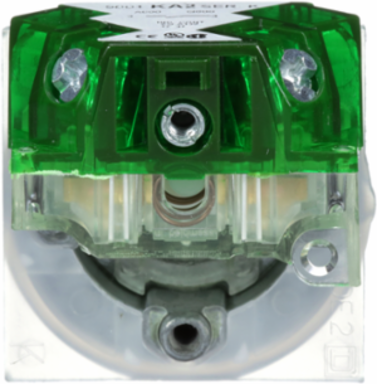

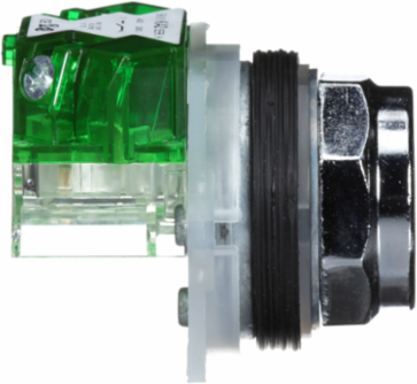

Schneider Electric 9001KR1BH5 Harmony 9001K Push Button, 30mm Metal, Spring Return, 1NO, IP66
- MPN: 9001KR1BH5
- UPC: 785901066781
- PPN: SCH-9001KR1BH5
CAD
$77.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This black push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It uses screw-clamp terminals and has 1 x NO contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features spring return flush push. It weighs 121g and its dimensions are, 48mm wide, 45mm high, 56mm deep. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Features
- Harmony 9001K series pilot device is engineered for a standard 30 mm (1.18-inch) diameter mounting hole layout, the benchmark size for heavy-duty industrial command panels. It provides panel builders, allowing for easier manipulation by glove-wearing operators and drop-in integration into existing heavy industry control stations.
- Featuring a premium chromium-plated metal bezel, this mechanical switch body is purpose-built to survive punishing environment states. It resists pitting, oxidative corrosion, and direct mechanical impacts on factory floors, maintaining absolute structural integrity across heavy-production settings like metallurgy, wastewater treatment, oil and gas processing, and mining facilities.
- Engineered with comprehensive IP66 ingress protection and NEMA 1, 2, 3, 3R, 4, 12, and 13 ratings, this push button is completely oil-tight, dust-tight, and waterproof without requiring separate rubber protective boots. It safeguards the internal contact chamber from dense airborne particulates, cutting oils, cooling fluids, and direct hose spray, making it the perfect solution for food processing clean rooms and aggressive manufacturing washdown environments.
- Designed with a high-precision mechanical spring return mechanism, this black flush-profile actuator instantly snaps back to its starting state the exact millisecond pressure is removed. Tested to endure a massive 5,000,000 mechanical operating cycles, this momentary action guarantees crisp, zero-latency signaling to downstream control loops, preventing sticking and ensuring reliable execution of manual machine jogging, calibration inputs, or standard motor start commands.
- This complete monolithic assembly arrives fully pre-configured out of the box with one Normally Open (1NO) high-integrity silver-alloy contact block, removing comparison guesswork and separate sub-component matching. Rated for up to 600V AC/DC at a heavy-duty 10A conventional thermal current threshold, it reliably interfaces with everything from high-voltage inductive starter coils to low-voltage PLC input circuits without signal degradation or contact pitting.
- Equipped with industrial-grade screw clamp terminals engineered to handle solid or flexible wiring configurations, this device features terminals that arrive pre-backed out to significantly accelerate field installation times. The cross-slotted screw design allows for high-torque tightening (up to 7.08 lbf.in) to deliver exceptional resistance to continuous physical vibration from nearby stamp presses, crushers, or heavy manufacturing equipment, preventing loose wiring faults and unexpected production downtime.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- metal guard
- Type Of Operator
- spring return
- Operator Profile
- black flush, unmarked
Range Of ProductHarmony 9001K
Product Or Component Typepush-button
Device Short Name9001K
Complementary
- Terminals Description Iso N°1
- (13-14)NO
- Contacts Material
- silver alloy contacts
- Mounting Diameter
- 30 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Shape Of Signaling Unit Head
- octagonal
- Net Weight
- 0.121 kg
- Size
- 30 mm
- Device Presentation
- complete product
- Contacts Type And Composition
- 1 NO
- Bezel Material
- metal
- Connections - Terminals
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Mechanical Durability
- 5000000 cycles
- Operating Position
- any position
- Cad Overall Width
- 48 mm
- Cad Overall Depth
- 56 mm
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Positive Openingwithout
Operator Profileflush
Rated Breaking Capacity3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Cap/Operator Or Lens Colourblack
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Cad Overall Height45 mm
[Icm] Rated Short-Circuit Making Capacity12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Contact Operationstandard
Type Of Operatorspring return
Tightening Torque0.8-0.8 N.m IEC 60947-1
Shape Of Screw Headcross slotted
Environment
- Product Certifications
- NEMA || UL 508
- Standards
- EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C 852 || EN/IEC 60947-5-1 || JIS C 4520 || EN/IEC 60947-5-4
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
