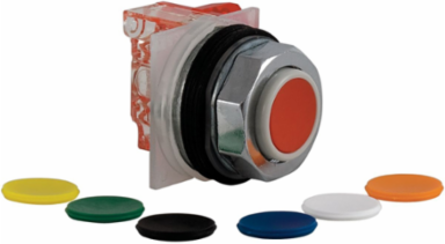

Schneider Electric 9001KR3UH5 Harmony 9001K Metal Push Button 30mm, 1 NO, Spring Return, IP66
- MPN: 9001KR3UH5
- UPC: 785901033776
- PPN: SCH-9001KR3UH5
CAD
$77.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony 9001K, modular projecting push button with 7 colors cap operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NO contact, is supplied with metal extended guard and uses screw-clamp terminals. This projecting push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- without guard
- Operator Profile
- 7 colours choice projecting, unmarked
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001K
Type Of Operatorspring return
Device Short Name9001K
Complementary
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Bezel Material
- metal
- Connections - Terminals
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Contacts Material
- silver alloy contacts
- Positive Opening
- without
- Operator Profile
- projecting
- Operating Position
- any position
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Cap/Operator Or Lens Colour
- 7 colours choice
- Shape Of Screw Head
- cross slotted
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Device Presentation
- complete product
Contacts Type And Composition1 NO
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Contact Operationstandard
Mechanical Durability5000000 cycles
Mounting Diameter30 mm
Type Of Operatorspring return
[Ith] Conventional Free Air Thermal Current10 A
Shape Of Signaling Unit Headoctagonal
Tightening Torque0.8-0.8 N.m IEC 60947-1
Net Weight0.128 kg
Size30 mm
Environment
- Product Certifications
- NEMA || UL 508
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
- Shock Resistance
- 50 gn IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
StandardsJIS C 852 || UL 508 || JIS C 4520 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
