Schneider Electric 9001KR2UH13 Metal Recessed Push Button 30mm Spring Return 1 C/O IP66
- MPN: 9001KR2UH13
- UPC: 785901856870
- PPN: SCH-9001KR2UH13
CAD
$104.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

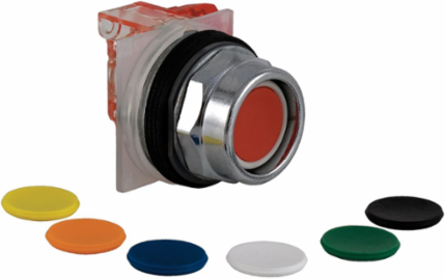

This Harmony 9001K, modular recessed push button with extended guard and set of 7 color caps operates with spring return mechanism. It has a chromium-plated metal bezel and 1 changeover contact. This recessed push button with extended guard and set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- metal guard
- Operator Profile
- 7 colours choice recessed, unmarked
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001K
Type Of Operatorspring return
Device Short Name9001K
Complementary
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Terminals Description Iso N°1
- (13-14-11-12)OF
- Short-Circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Contact Operation
- standard
- Mechanical Durability
- 5000000 cycles
- Mounting Diameter
- 30 mm
- Type Of Operator
- spring return
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Shape Of Signaling Unit Head
- octagonal
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Shape Of Screw Head
- cross slotted
- Net Weight
- 0.136 kg
- Size
- 30 mm
- Device Presentation
- complete product
Contacts Type And Composition1 C/O
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
Bezel Materialmetal
Connections - Terminalsscrew clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Contacts Materialsilver alloy contacts
Positive Openingwithout
Operator Profilerecessed
Operating Positionany position
Rated Breaking Capacity3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Cap/Operator Or Lens Colour7 colours choice
Cad Overall Width48 mm
Cad Overall Depth56 mm
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Cad Overall Height45 mm
Environment
- Product Certifications
- NEMA || UL 508
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
- Shock Resistance
- 50 gn IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || JIS C 852
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
