Schneider Electric

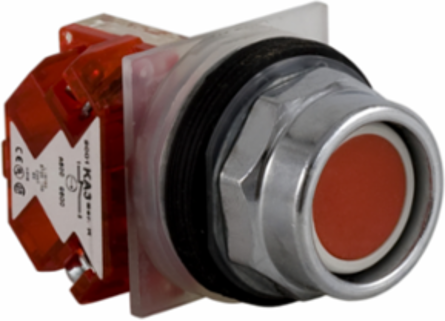

Schneider Electric 9001KR2RH6 Push-button, Harmony 9001K, metal, recessed, red, 30mm, spring return, 1 NC

Push-button, Harmony 9001K, metal, recessed, red, 30mm, spring return, 1 NC
  • MPN: 9001KR2RH6
  • UPC: 785901033691
  • PPN: SCH-9001KR2RH6

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Looking to buy a large quantity?

    To view product inventory

    CAD$77.25/ EA

    Description

    This Harmony 9001K, modular recessed red push button with extended guard has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NC contact and uses screw-clamp terminals. This recessed push button with extended guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Specifications

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP121006EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileN/A

    Complementary

    Light Source
    without
    Mounting Diameter
    30 mm
    Cap/Operator Or Lens Colour
    red
    Device Presentation
    complete product
    Bezel Material
    metal
    Connections - Terminals
    screw clamp terminals
    Type Of Operator
    spring return
    Light Block Supplywithout supply
    Operator Profilerecessed
    Size30 mm
    Contacts Type And Composition1 NC
    [Ie] Rated Operational Current10 A, AC-15 || 10 A, DC-13
    Contact Operationstandard
    Operating Positionany position

    Environment

    Product Certifications
    NEMA || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE
    Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13

    Specifications

    Operator Additional Information
    metal guard
    Type Of Operator
    spring return
    Operator Profile
    red recessed
    Range Of ProductHarmony 9001K
    Product Or Component Typepush-button
    Device Short NameK
