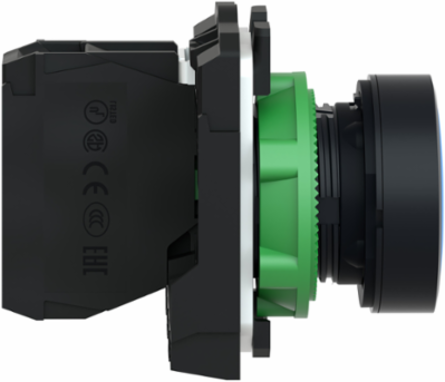

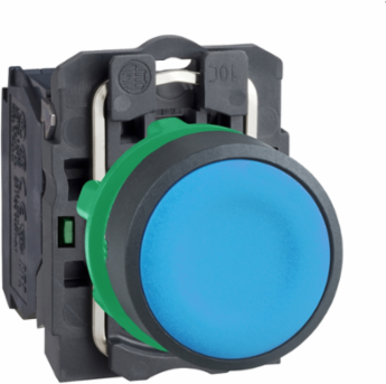

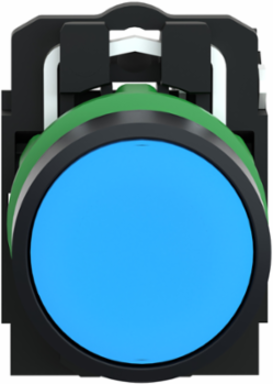

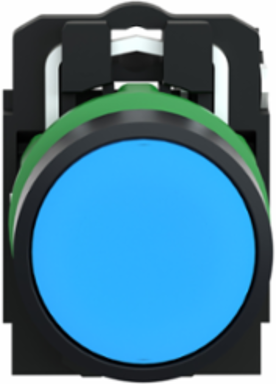

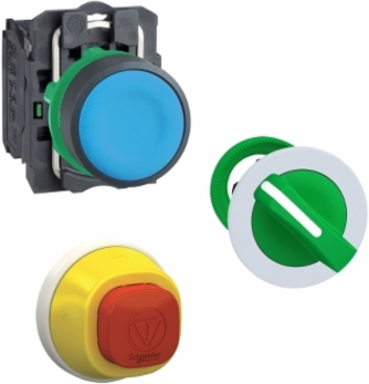

Schneider Electric XB5AA61 Harmony XB5 Blue Plastic Flush Push Button, 22mm, Spring Return, 1NO

  • MPN: XB5AA61
  • PPN: SCH-XB5AA61
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $36.91

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony XB5, modular blue push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Mexico
    Depth52 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Bezel Material
    dark grey plastic, plasticdark grey plastic
    Electrical Durability
    1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Operating Travel
    2.6 mm NO changing electrical state), 4.3 mm total travel)
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    [Ie] Rated Operational Current
    3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

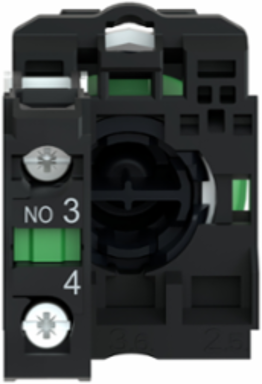

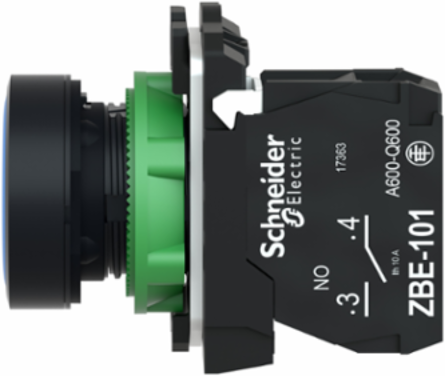

    Terminals Description Iso N°1
    (13-14)NO, (13-14)NO
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.07126589388316908, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.3 kg CO2 eq., 0.29222504482492223
    Local Data Status
    Publishable
    Return Indicator
    Y
    Future Msrp
    24.62
    Stock Policy
    2
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2303008EN
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Average Percentage Of Recycled Plastic Content
    14 %
    Contact Operation
    slow-break
    Contacts Type And Composition
    1 NO
    Device Short Name
    XB5
    Gcr Bridge
    XB5AACUST01
    Mechanical Durability
    10000000 cycles
    Operating Force
    3.8 N NO changing electrical state
    Overvoltage Category
    class II conforming to IEC 60536
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Repair Index
    A
    Range Of Product
    Harmony XB5
    Returnability
    Yes
    Shape Of Signaling Unit Head
    round
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    0.4 kg CO2 eq.
    Vibration Resistance
    5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Contacts Composition
    1 NO
    Operator Profile 1 Marking
    unmarked
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; APAC
    Height Nominal
    42 mm
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Short-circuit Protection
    10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)
    36.000 g
    Take-back
    No
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Customizableno, 1
    Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Certificate AgencyDNV, CSA, UL Listed, LROS (Lloyds register of shipping), BV
    Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
    Carbon Footprint Of The Distribution Phase [A4]0.013767481154870852, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.01039542107849661
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0.004790253521126762
    Local Publishable Date2026-03-26
    Future Imap19.02
    Stocking FlagN
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Percentage Of Recycled Metal Content13 %
    Compatibility CodeXB5
    Contacts Materialsilver alloy (Ag/Ni)
    Contacts Usagestandard contacts
    Fixing Collar Materialplastic
    Head Typestandard

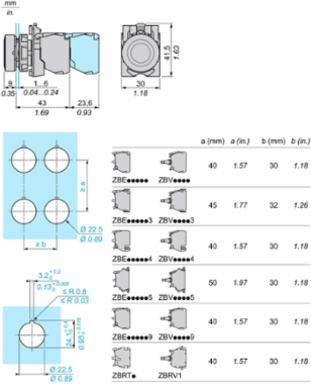

    Mounting Diameter22.5 mm
    Operator Profileblue flush, unmarked
    Positive Openingwithout
    Product Or Component Typepush-button
    Protective TreatmentTH
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity1
    Software Versionv5.9.4
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Type Of Operatorspring return
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Operator Profile 1 Cap Operator Or Lens Colorblue
    Pep CodeENVPEP2303008EN
    Pep Verification Date2024-03-24
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; APAC
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; APAC
    Width Nominal30 mm
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Cap/Operator Or Lens Colourblue
    Nbr. Of Units In Pkg.1
    Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67, IP69, IP69K
    Take Back
    No
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2303008EN
    Eu Rohs Directive
    Compliant
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP2303008EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
    Recycled Metal Content At Cr Level13 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.39244409446258555
    Environmental DisclosureENVPEP2303008EN
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2024-03-24
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    push-button
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
