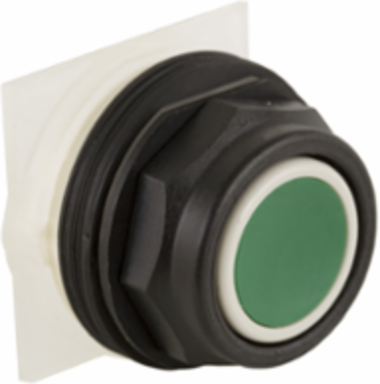

Schneider Electric 9001SKR1G Harmony 30mm Green Flush Push-Button Head, Spring Return, IP64
- MPN: 9001SKR1G
- UPC: 785901042051
- PPN: SCH-9001SKR1G
CAD
$49.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony 9001SK, modular flush green push button with full guard has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Features
- This Harmony 9001SK product features a standard 30mm mounting diameter, designed for seamless physical compatibility with existing heavy-duty control panels and motor control centers. It serves as a direct drop-in replacement for older Square D or standard industrial pushbuttons, eliminating the need for tedious panel resizing or custom modifications during retrofits.
- The 9001SKR1G utilizes a high-reliability spring return mechanism for instant, momentary activation, making it perfect for standard stop/start control circuits and automation handshakes. The flush, green actuator profile gives operators clear, immediate visual and tactile identification, which minimizes accidental triggers while ensuring high visibility on busy control panel faces.
- This product is a configurable switch body (operator head only) and does not come pre-packaged with internal contact blocks, allowing you total flexibility to stack the exact electrical contacts your circuit requires. It is fully compatible with Schneider Electric 9001KA series contact blocks (such as 9001KA1, KA2, or KA3), enabling industrial panel builders to configure custom normally open (NO) or normally closed (NC) logic paths without paying for unused components.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E42259 CCN NKCR, CSA LR24590 class 3211 03, CE
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- plastic
- Device Short Name
- 9001SK
- Light Source
- without
- Operator Profile
- flush
- Product Or Component Type
- head for push-button
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Cap/Operator Or Lens Colour
- green
- Package Weight(Lbs)
- 45.359 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Compositionwithout contact block
Light Block Supplywithout supply
Mounting Diameter30 mm
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony 9001SK
Shape Of Signaling Unit Headoctagonal
Type Of Operatorspring return
Pep CodeENVPEP2503027EN
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ip Degree Of Protection
- IP64, IP65/IP66
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Nema Degree Of ProtectionNEMA 3R/4X/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- head for push-button
Range Of ProductHarmony 9001SK
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
